Apraksts

• Product description

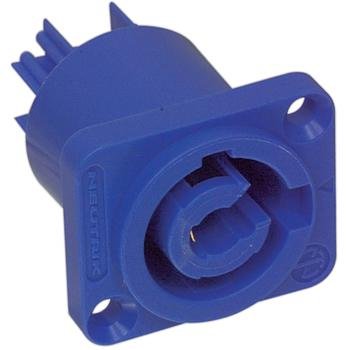

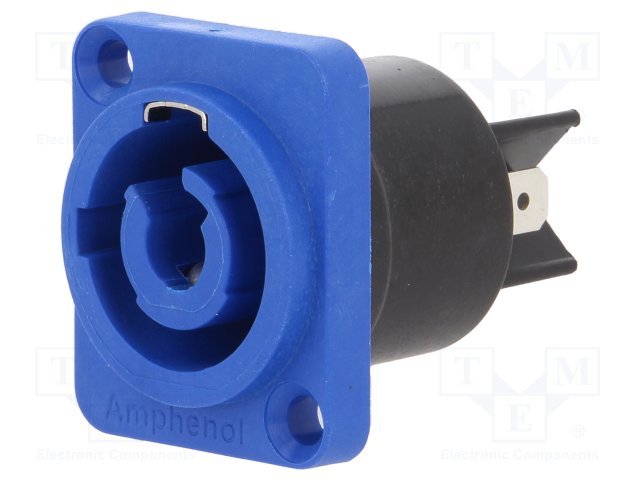

• Air tight chassis connector, A-type for power-in, flat tab terminals
• The PowerCon® is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a save power connection.
• Attention: The PowerCon® is a connector without breaking capacity, i.e. the PowerCon® should not be connected or disconnected under load or live!
• Features & Benefits
• • Lockable 3-pole equipment (AC) connector with contacts for line, neutral and pre-mating safety ground.
• • High current capacity, rated at 20A / 250V ac
• • Fast and easy locking system
• • Extremely robust and reliable
• • Excellent cable retention
• • UL, C-UL recognized components
• • VDE and SEV approved

Parametri

Papildu dokumentācija
