Apraksts

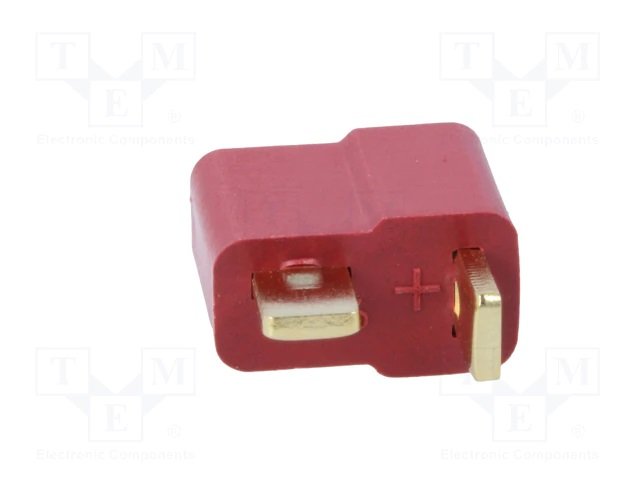

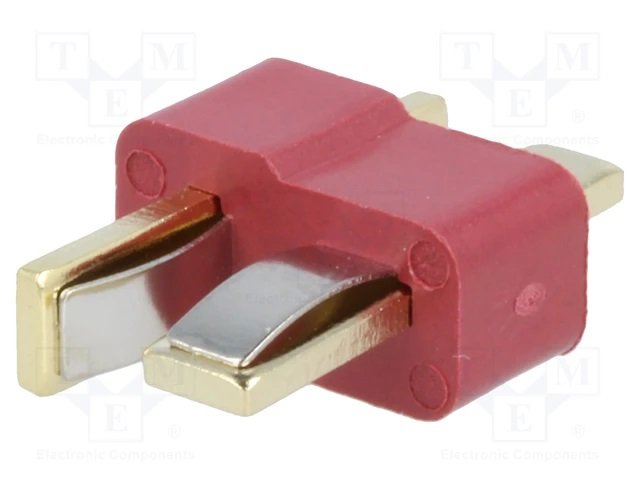

• Manufacturer AMASS
• Connector plug
• Type of connector DC supply
• Connector series AM-1015
• Kind of connector male
• Number of pins 2
• Mechanical mounting for cable
• Electrical mounting soldering
• Contact plating gold flash
• Colour red
• Current rating 25A
• Flammability rating UL94V-0
• Operating temperature -20...120°C
• Rated voltage  500V
• Spatial orientation  straight
• Contact material brass
• Mechanical durability 1000 cycles
• Body material polyamide
• Wire size 12AWG
• Additional information
• Gross weight: 2.35 g
• Manufacturer part number: AM1015-M

Parametri

500V
2
Spraudnis
Taisns
25A
AM1015

Papildu dokumentācija
