Apraksts

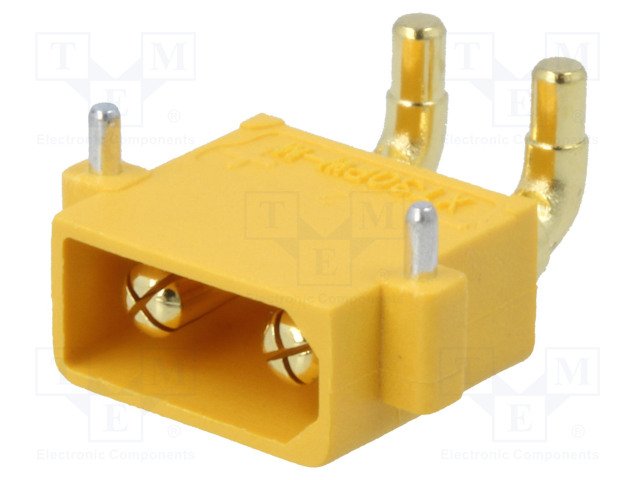

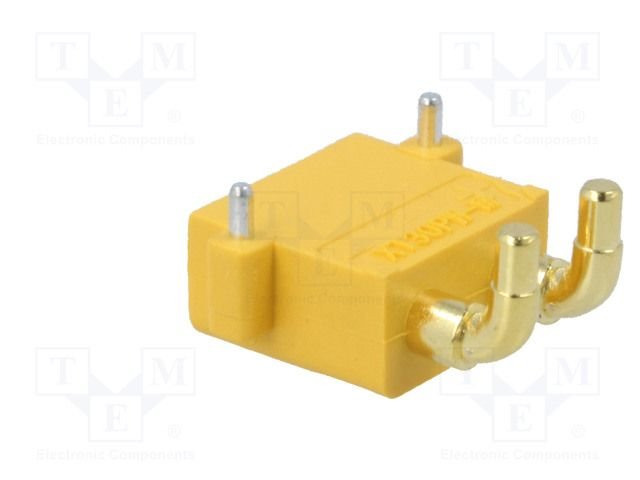

• Manufacturer AMASS
• Connector socket
• Type of connector DC supply
• Connector series XT30
• Kind of connector male
• Number of pins 2
• Mechanical mounting on PCBs
• Electrical mounting THT
• Contact plating gold flash
• Colour yellow
• Current rating 15A
• Flammability rating UL94V-0
• Operating temperature -20...120°C
• Rated voltage 500V
• Spatial orientation angled 90°
• Contact material brass
• Body material polyamide
• Mechanical durability 1000 cycles Additional information
• Gross weight: 1.22 g
• Manufacturer part number: XT30PW-M

Parametri

500V
2
Spraudnis
15A
XT30
Leņķisks 90°

Papildu dokumentācija
