Apraksts

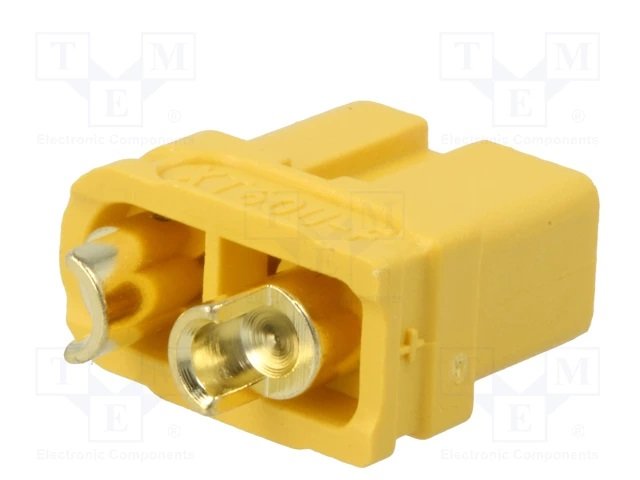

• Manufacturer AMASS
• Connector plug
• Type of connector DC supply
• Connector series XT60
• Kind of connector female
• Number of pins 2
• Mechanical mounting for cable
• Electrical mounting soldering
• Contact plating gold flash
• Colour yellow
• Current rating 30A
• Flammability rating UL94V-0
• Operating temperature -20...120°C
• Rated voltage 500V
• Spatial orientation straight
• Contact material brass
• Mechanical durability 1000 cycles
• Body material polyamide
• Wire size 12AWG

Parametri

500V
2
Ligzda
Taisns
30A
XT60
