Apraksts

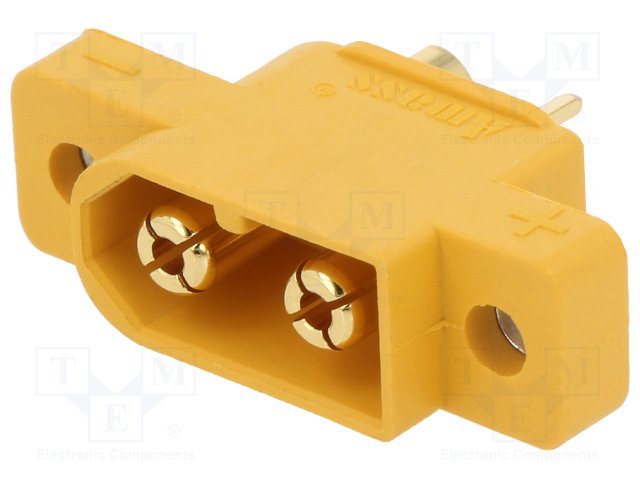

• Manufacturer AMASS
• Connector socket
• Type of connector DC supply
• Connector series XT60
• Kind of connector male
• Number of pins 2
• Mechanical mounting flange (2 holes), for panel mounting
• Electrical mounting soldered
• Contact plating gold flash
• Colour yellow
• Current rating 30A
• Flammability rating UL94V-0
• Operating temperature -20...120°C
• Rated voltage 500V
• Spatial orientation straight
• Contact material brass
• Mechanical durability 1000cycles
• Body material polyamide
• Wire size 12AWG Additional information
• Gross weight: 3.55 g

Parametri

500V
2
Spraudnis
30A
XT60
Taisns korpusam

Papildu dokumentācija
