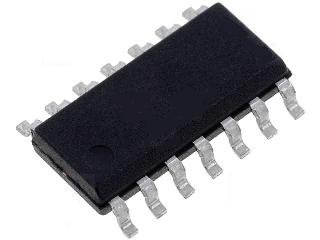

Apraksts

• Manufacturer: Texas Instruments
• Product Category: Logic Gates
• RoHS: Details
• Product: Single-Function Gate
• Logic Function: NAND
• Logic Family: CD4000
• Number of Gates: 4 Gate
• Number of Input Lines: 8 Input
• Number of Output Lines: 4 Output
• High Level Output Current: - 6.8 mA
• Low Level Output Current: 6.8 mA
• Propagation Delay Time: 60 ns
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 3 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package/Case: SOIC-14
• Packaging: Reel
• Packaging: Cut Tape
• Packaging: MouseReel
• Brand: Texas Instruments
• Function: NAND
• Height: 1.58 mm
• Input Type: CMOS
• Length: 8.65 mm
• Logic Type: 2-Input NAND
• Number of Bits: 4 bit
• Operating Supply Current: 15 uA
• Operating Supply Voltage: 10 V
• Operating Temperature Range: - 55 C to + 125 C
• Output Type: CMOS
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Logic Gates
• Quiescent Current: 20 nA
• Series: CD4011B
• 2500
• Subcategory: Logic ICs
• Width: 3.91 mm
• Unit Weight: 129,400 mg
