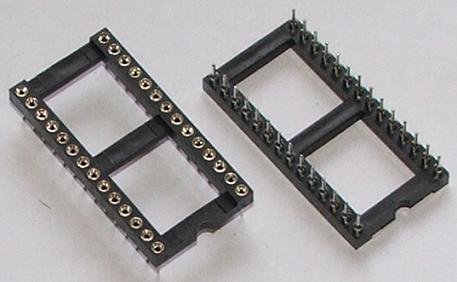

Apraksts

• Manufacturer CONNFLY
• Type of integrated circuit socket DIP
• Number of pins 28
• Terminal pitch 2.54mm
• Version precision
• Electrical mounting THT
• Contact plating gold-plated
• Row pitch 15.24mm
• Body material polyester
• Max. contact resistance: 3mΩ
• Flammability rating UL94V-0
• Pin diameter 0.51mm
• Maximum current 1A
• Operating temperature -40...105°C
• Sockets features
• bushing contacts
• round pins
• Additional information
• Gross weight: 2.03 g
• Manufacturer part number: DS1001-01-28BT1WSF6S
