Apraksts

• Manufacturer LITTELFUSE

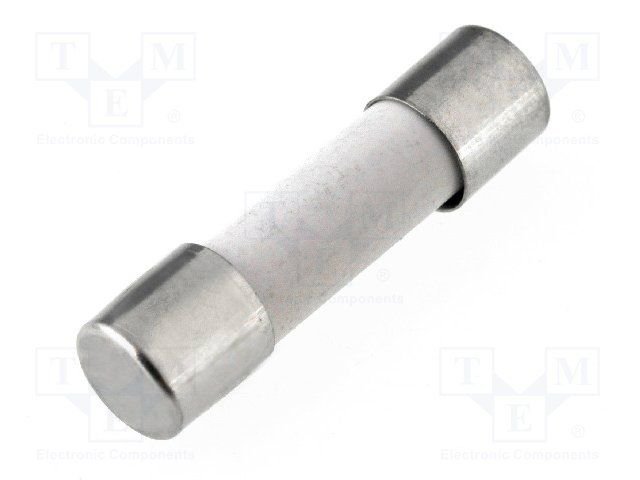

• Fuse type fuse
• Fuse characteristics time-lag
• Kind of fuse ceramic, miniature
• Breaking capacity 500A
• Rated current 16A
• Rated voltage 250V AC
• Fuse size 5x20mm
• Breaking characteristics 1,5 In: min 30 min., 2,1 In: max 30 min., 2,75 In: min 750 ms, 2,75 In: max 80 s, 4 In: min 150 ms, 4 In: max 5 s, 10 In: min 10 ms, 10 In: max 150 ms
• Max voltage drop 200mV
• Contact material brass
• Fuses application standard applications
• Soldering temperature 260°C / 5 s
• Kind of package bag
• Contact plating nickel plated
• Manufacturer series 215
• Operating temperature -55...125°C

Parametri

16A
250VAC
Lēns
