Apraksts

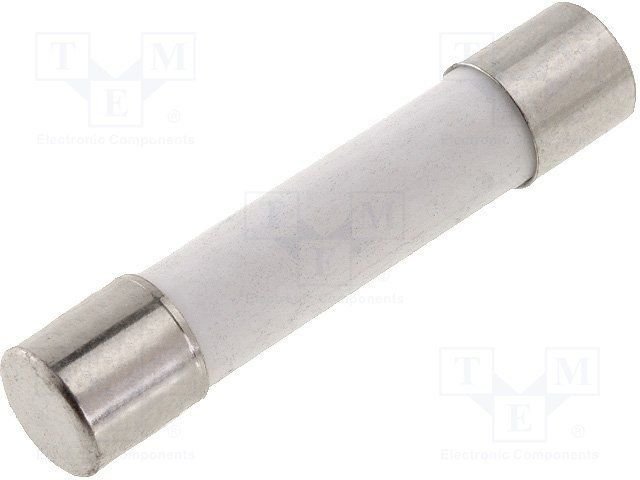

• Manufacturer SIBA
• Type of fuse fuse
• Fuse characteristics time-lag
• Kind of fuse ceramic, miniature
• Breaking capacity 1.5kA
• Rated current 1A
• Rated voltage 500V AC
• Fuse size 6,3x32mm
• Breaking characteristics 1,5 In: min 1 h, 2 In: max 30 min., 2,75 In: min 400 ms, 2,75 In: max 80 s, 4 In: min 95 ms, 4 In: max 5 s, 10 In: min 10 ms, 10 In: max 300 ms
• Max voltage drop 350mV
• Contact material brass
• Fuses features Extinguishing agent
• Energy I2t 1.4A2s
• Contact plating nickel plated

Parametri

1A
500VAC
Lēns
