Apraksts

• Manufacturer SIBA
• Type of fuse fuse
• Fuse characteristics ultra rapid
• Current rating 250mA
• Rated voltage  63V
• Mounting SMD
• Kind of fuse ceramic
• Max voltage drop 310mV
• Energy I2t 0.0001A2s
• Case 1206
• Soldering temperature 260°C / 10 s
• Resistance  880mΩ
• Kind of package bag

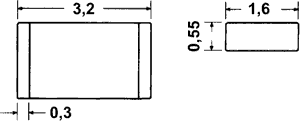

• Dimensions see
• Fuses features
• hermetic
• low resistance
• Additional information
• Gross weight: 0.028 g
• Manufacturer part number: 154000.0,25

Parametri

0.25A
63VDC
Ātrs

Papildu dokumentācija
