Apraksts

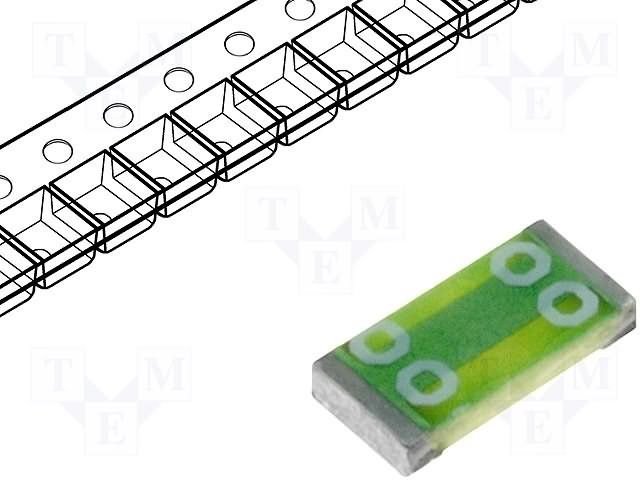

• Manufacturer SCHURTER
• Type of fuse fuse
• Fuse characteristics time-lag
• Kind of fuse glass
• Breaking capacity 100A
• Current rating 8A
• Rated voltage 63V DC, 32V AC
• Mounting SMD
• Energy I2t 14A2s
• Case 1206
• Soldering temperature 245°C / 3 s
• Resistance 6.3mΩ
• Manufacturer series UST Additional information
• Gross weight: 0.08 g

Parametri

8A
63VDC
Ātrs

Papildu dokumentācija
