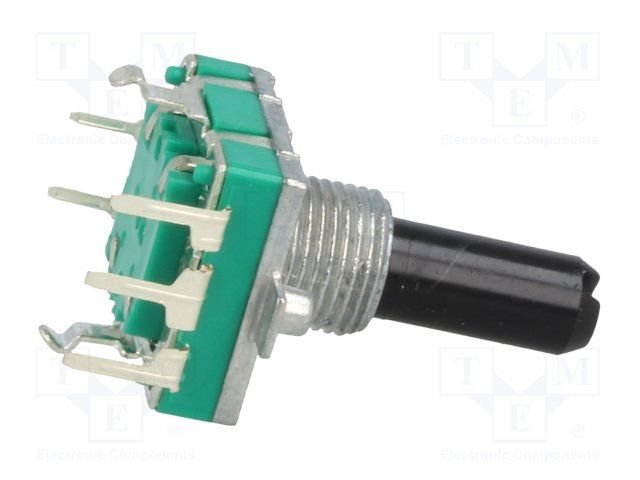

Enkoders, 24imp/revol., 16x17.2x6.5, L=20mm, plastmasas rokturis D=6mm, D-profils, vertikāls, ar spiedpogu
Enkoders, 24imp/revol., 16x17.2x6.5, L=20mm, plastmasas rokturis D=6mm, D-profils, vertikāls, ar spiedpogu
Enkoders, 24imp/revol., 16x17.2x6.5, L=20mm, plastmasas rokturis D=6mm, D-profils, vertikāls, ar spiedpogu Enkoders, 24imp/revol., 16x17.2x6.5, L=20mm, plastmasas rokturis D=6mm, D-profils, vertikāls, ar spiedpogu

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Enkoders, 24imp/revol., 16x17.2x6.5, L=20mm, plastmasas rokturis D=6mm, D-profils, vertikāls, ar spiedpogu

Cena: 3.18 €
00015933
EC16E20-24P24C-SW
5
  • Apraksts

    • Manufacturer SR Passives
    • Type of encoder incremental
    • Mounting THT
    • Resolution 24imp/revol.
    • Output signal two phase A and B
    • Mechanical durability 50000cycles
    • Max. operating current 5mA
    • Shaft surface D spring
    • Shaft length 13mm
    • Operating voltage 5V DC
    • Shaft diameter 6mm
    • Number of positions 24
    • Cut depth 1.5mm
    • Encoders features with button
    • Thread length 7mm
    • L shaft length 20mm
    • Body dimensions 16x17.2x6.5mm
    • Spatial orientation 1 vertical Additional information
    • Gross weight: 6.32 g
