Apraksts

• Manufacturer OPTOSUPPLY
• Type of diode LED
• Mounting SMD
• Case 3528,  PLCC2
• LED colour white cold
• Luminosity 750...1120mcd
• Colour temperature 10000K

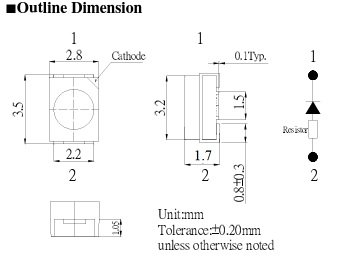

• Dimensions 3.5x2.8x1.7mm
• Viewing angle 120°
• LED current 10...15mA
• Chromatic coordinates  x: 0.27; y: 0.28
• Front flat
• Power 225mW
• LEDs' features integral current limiting resistor
• Operating voltage 12V
• Additional information
• Gross weight: 0.037 g
• Manufacturer part number: OSW5DLS1C1A-12V

Parametri

PLCC2
SMD
auksta balta
10000K
750...1120mcd
12V
10...15mA

Papildu dokumentācija
