Apraksts

• Manufacturer HIGHLY
• Type of sensor limit switch
• Kind of actuator adjustable plunger, length R 30-118mm
• Output configuration NO + NC
• Contact current max. 5A
• Switched voltage max. 250V AC
• Connection strain relief
• IP rating IP64
• Body dimensions 64x28x25mm
• Number of mounting holes 4
• Operating temperature -25...70°C
• Body material metal,  plastic
• AC contacts rating @R  5A / 125V AC
• (at resistive load)
• Mounting holes pitch 21/56mm
• Switches features snap action contacts

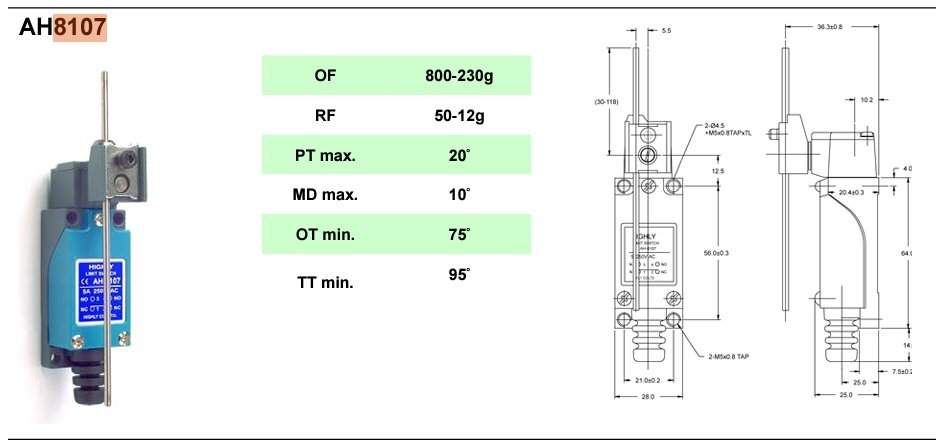

• Dimensions see
• Additional information
• Gross weight: 178.4 g
• Manufacturer part number: AH8107
