Apraksts

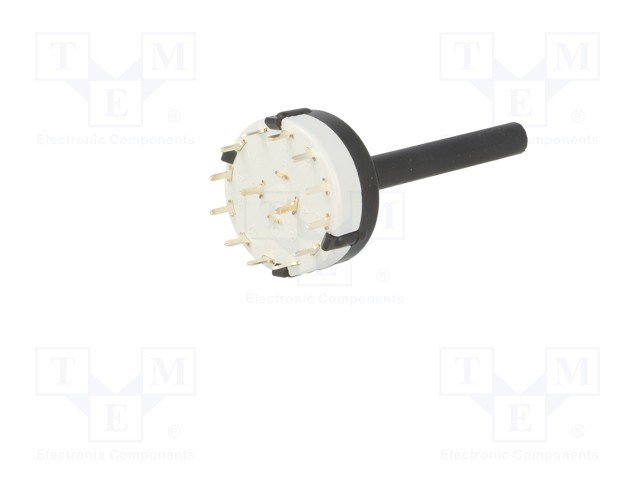

• Manufacturer: LORLIN Electronics Ltd.
• - made in UK

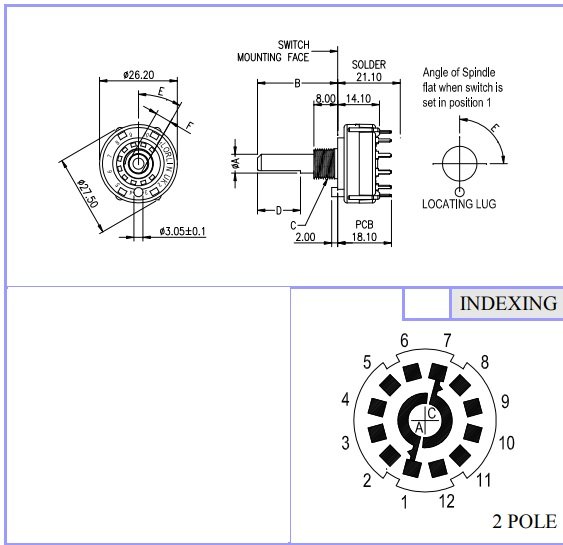

• - series of rotary switches with spindle dia. 6mm
• - available with solder or PCB terminals
• - adjustable number of positions
• - operational life at least 10 000 operations
• - indexing angle 30°
• - mounting bush M10x0,75
• - spindle dia. A = 6 mm
• - spindle length B = 50 mm
• - spindle without flatness D
• - available with non-shorting or shorting contacts
• - voltage rating: 300V AC/DC at resistive load
• - max current of closed contacts: 5A
• - max switching current: 150mA AC/DC
• - insulation resistance: >25 000 MΩ;
• - temperature range: -30°C to +85°C
• - switching force: 8.6 Ncm
• - material: fiber glass reinforced nylon
• - contacts material: silver plated brass

Parametri

0.15A/250VDC
6
Galetes parslēdzejs
2

Papildu dokumentācija
