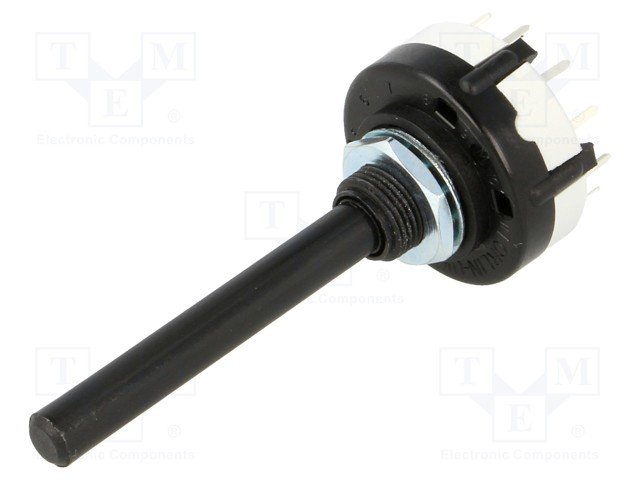

Apraksts

• Manufacturer LORLIN
• Type of switch rotary
• Number of positions 4
• DC contacts rating @R  0.15A / 250V DC
• Poles number 3
• Indexed positions 30°
• Operating temperature -30...85°C
• Leads for PCB
• Contact material brass
• Switching method  BBM (non-shorting)
• Body material polyamide
• Min. insulation resistance 999MΩ
• Mechanical durability 10000 cycles
• Shaft surface smooth
• Shaft diameter 6mm
• Shaft length 50mm
• Fastening thread M10x0,75
• Switching torque 8.6Ncm
• Contact plating silver plated
• Stable positions number 4
• Additional information
• Gross weight: 10.95 g
• Manufacturer part number: CK1051

Parametri

0.15A/250VDC
4
Galetes parslēdzejs
3

Papildu dokumentācija
