Apraksts

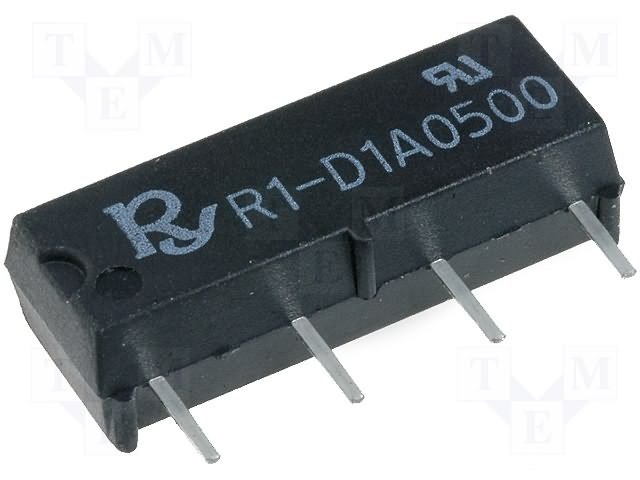

• Manufacturer RAYEX ELECTRONICS
• Type of relay reed
• Contacts configuration SPST-NO
• Rated coil voltage 5V DC
• Contact current max. 1A
• Switched voltage max 250V DC
• Switching capacity 10VA
• Coil resistance 500Ω
• Coil power consumption 50mW
• Mounting PCB
• Case SIL
• Contact resistance 150mΩ
• Coil voltage min. 3.75V DC
• Coil voltage max. 16V DC
• Operating temperature -40...85°C
• Operate time 1ms
• Release time 0.5ms
• Contact material AgCdO
• Relay features protection diode
• Body dimensions 19 x 5 x 7mm
• Relay series R1
• Terminal pitch 5.08mm
