Apraksts

• Specification

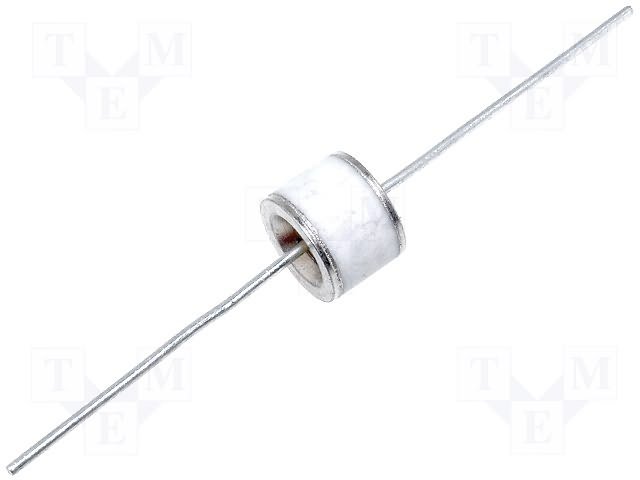

• Surge arrester type surge arrester
• Mounting THT
• Leads axial
• Typical spark-over voltage 230V
• Max. overload voltage 700V
• Min spark-over voltage 184V
• Surge arresters application surge supression, devices protection during nonstationary states, data transmission systems protection, test-control devices protection, telecommunication devices protection
• Min. insulation resistance 10000MΩ;
• Capacitance 2pF
• Impulse discharge current (8/20µs) 10kA
• Impulse discharge current AC 50Hz (1 s 10 times) 20A
• Max spark-over voltage 276V
• Operational life (10/1000µs, 500A) 300
