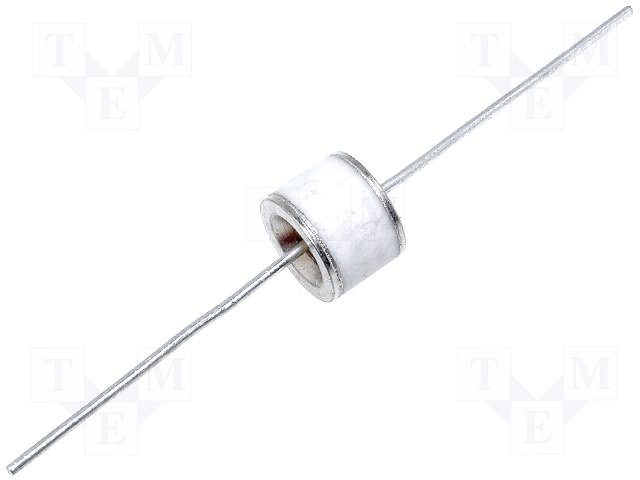

Izlādētājs 350V, 10GOm
Izlādētājs 350V, 10GOm

Izlādētājs 350V, 10GOm

Cena: 1.00 €
00011796
CG2-350L
6
  • Apraksts

    • Specification
    • Surge arrester type surge arrester
    • Mounting THT
    • Leads axial
    • Typical spark-over voltage 350V
    • Max. overload voltage 1kV
    • Min spark-over voltage 280V
    • Surge arresters application surge supression, devices protection during nonstationary states, data transmission systems protection, test-control devices protection, telecommunication devices protection
    • Min. insulation resistance 10000MΩ;
    • Capacitance 2pF
    • Impulse discharge current (8/20µs) 10kA
    • Impulse discharge current AC 50Hz (1 s 10 times) 20A
    • Max spark-over voltage 420V
    • Operational life (10/1000µs, 500A) 300
