Apraksts

• Specification

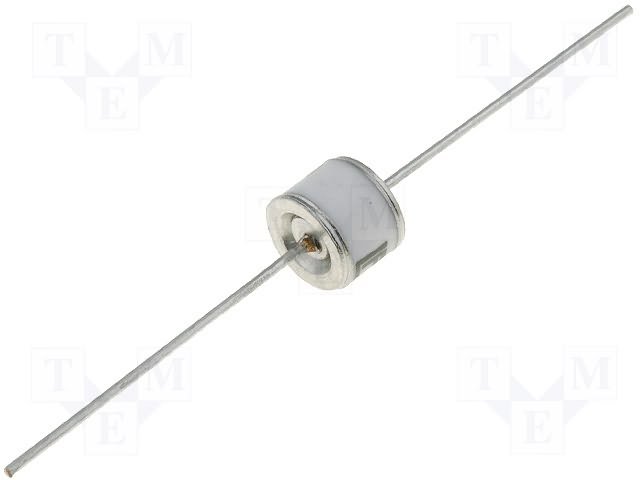

• Surge arrester type surge arrester
• Mounting THT
• Leads axial
• Typical spark-over voltage 600V
• Max. overload voltage 1.4kV
• Min spark-over voltage 510V
• Surge arresters application surge supression, audio, video input/output protection, data transmission systems protection, telecommunication devices protection
• Min. insulation resistance 10GΩ;
• Capacitance 1.5pF
• Impulse discharge current (8/20µs) 20kA
• Impulse discharge current AC 50Hz (1 s 10 times) 20A
• Body dimensions Ø;8.1 x 6mm
• Max spark-over voltage 690V
• Operational life (10/1000µs, 500A) 400
