Apraksts

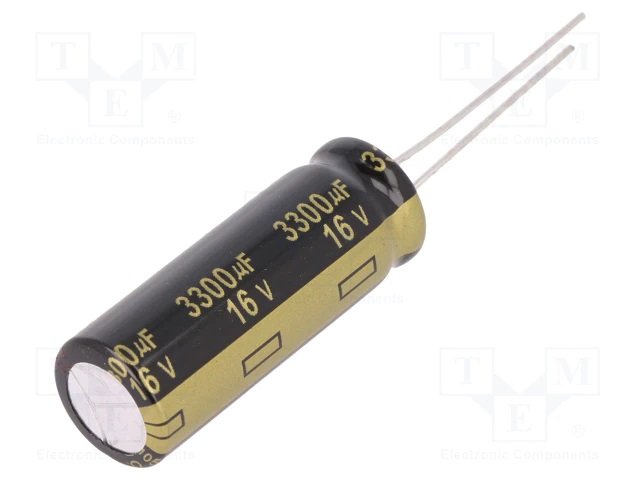

• Manufacturer PANASONIC
• Type of capacitor electrolytic
• Kind of capacitor low impedance
• Mounting THT
• Capacitance 3300µF
• Operating voltage 16V DC
• Body dimensions Ø12.5x35mm
• Terminal pitch 5mm
• Tolerance ±20%
• Service life 5000h
• Impedance 22mΩ
• Operating temperature -55...105°C
• Capacitors series FC
• Conform to the norm AEC-Q200
• Additional information
• Gross weight: 6.2 g
• Manufacturer part number: EEUFC1C332

Parametri

3300µF
16V
Ø12.5x35mm
PANASONIC
5000h

Papildu dokumentācija
