Apraksts

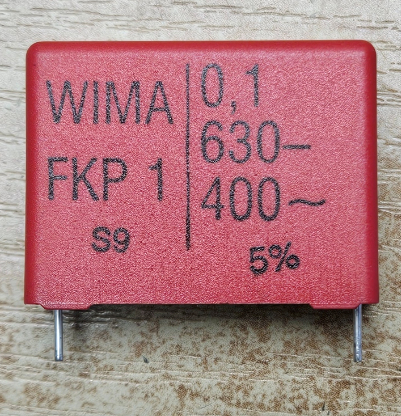

• Manufacturer WIMA
• Type of capacitor polypropylene
• Capacitance 0,1µF
• Body dimensions 13x24x31,5mm
• Mounting THT
• Tolerance ±5%
• Terminal pitch 27,5mm
• Operating temperature -55...100°C
• Climate class 55/100/56
• Pulse resistance 11kV/μs
• Capacitor application for high current applications, high frequency circuits, impulse circuits
• Flammability rating UL94V-0
• Kind of material flame retardant
• Max. operating voltage 400V AC, 630V DC
• Capacitors features
• low dielectric loss factor
• self-healing feature
• Masa bruto13.12 g

Parametri

100nF
630VDC
WIMA
400VAC
±5%
