Apraksts

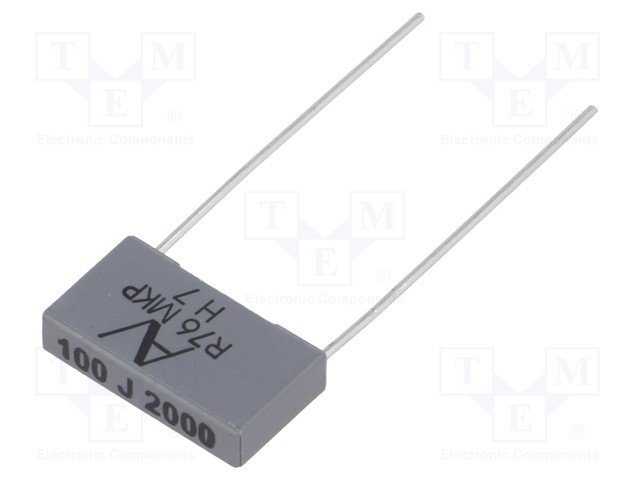

• Manufacturer KEMET
• Type of capacitor polypropylene
• Capacitance 100pF
• Terminal pitch 15mm
• Tolerance ±5%
• Body dimensions 18x4x10mm
• Climate class 55/105/56 IEC 60068-1
• Operating temperature -55...105°C
• Enclosure material self-extinguishing, UL94V-0
• Pulse resistance 9.5kV/μs
• Mounting THT
• Series R76
• Lead length 30mm
• Alias 76UI01004040J
• Max. operating voltage 700V AC,  2kV DC
• Conform to the norm AEC-Q200
• Additional information
• Gross weight: 1.162 g
• Manufacturer part number: R76UI01004040J

Parametri

100pF
2000VDC
KEMET
700VAC
±5%

Papildu dokumentācija
