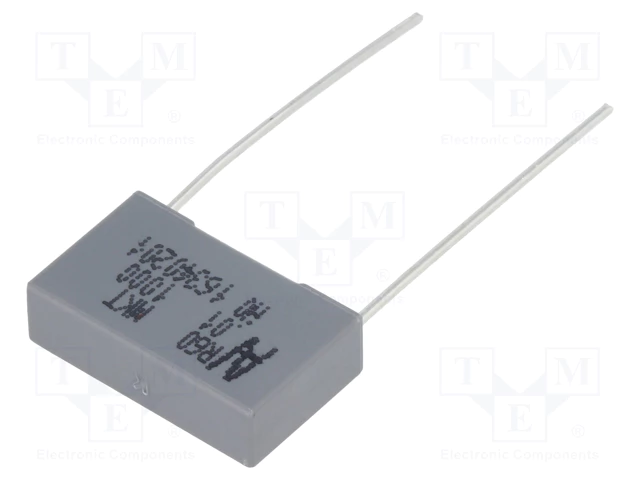

Apraksts

• Manufacturer KEMET
• Type of capacitor polyester
• Capacitance 10nF
• Terminal pitch 15mm
• Tolerance ±10%
• Body dimensions 18x5x11mm
• Operating temperature -55...105°C
• Pulse resistance 30V/μs
• Mounting THT
• Manufacturer series R60
• Conform to the norm AEC Q200
• Lead length 25mm
• Max. operating voltage 250V AC, 1kV DC
• Climate class
• 55/105/56
• IEC 60068-1
• Gross weight1.577 g

Parametri

10nF
1000VDC
±10%
KEMET
250VAC

Papildu dokumentācija
