Apraksts

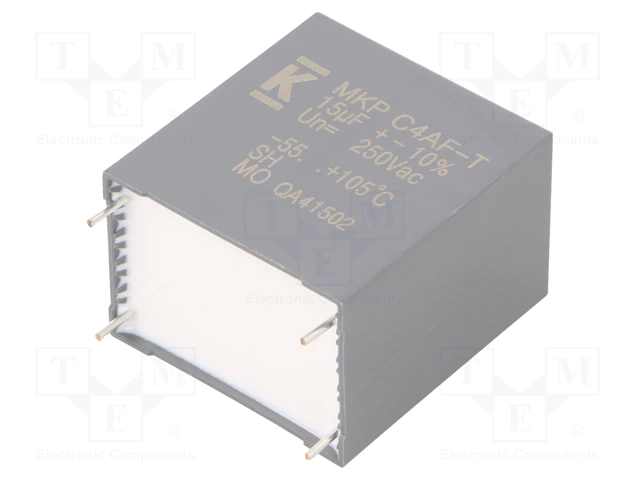

• Manufacturer KEMET
• Type of capacitor polypropylene
• Kind of capacitor DC-Link
• Capacitance 15µF
• ESR value 2.2mΩ
• Mounting THT
• Tolerance ±10%
• Operating temperature -55...105°C
• Body dimensions 57.5x56x45mm
• Terminal pitch 52.5mm
• Max. operating current 34.2A
• Conform to the norm AEC Q200
• Max. forward impulse current 1.1kA
• Capacitor application filtering
• Pulse resistance 27V/μs
• Manufacturer series C4AF
• Max. operating voltage 250V AC, 500V DC
• Gross weight64.35 g

Parametri

15µF
KEMET
500VDC
250VAC
±10%
