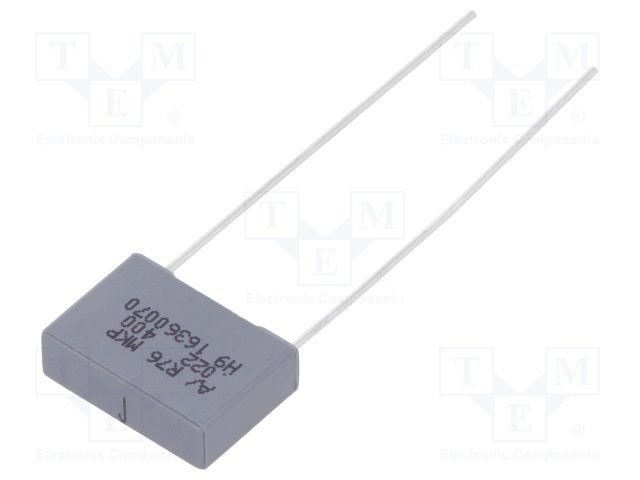

• Manufacturer KEMET
• Type of capacitor polypropylene
• Capacitance 22nF
• Terminal pitch 10mm
• Tolerance ±5%
• Body dimensions 13 x 4 x 9mm
• Climate class 55/105/56 IEC 60068-1
• Operating temperature -55...105°C
• Enclosure material self-extinguishing, UL94V-0
• Pulse resistance 1500V/μs
• Mounting THT
• Max. operating voltage 400V DC, 250V AC
• Capacitance - µF 0.022µF
• Lead length 30mm
• Capacitors series R76
• Conform to the norm AEC-Q200

Parametri

22nF
400VDC
KEMET
250VAC
±5%
