Apraksts

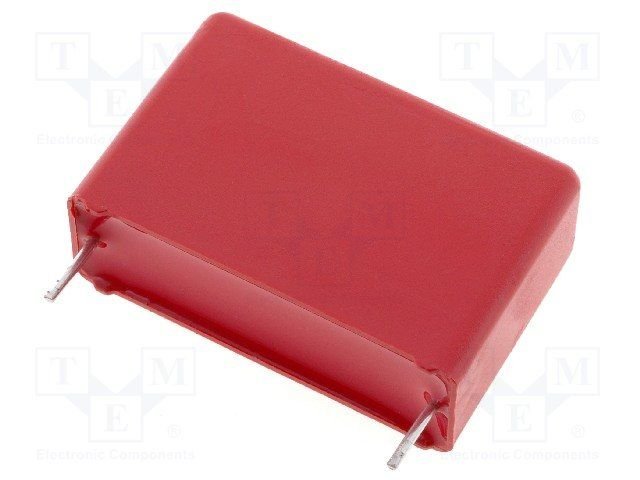

• Manufacturer WIMA
• Type of capacitor polypropylene
• Capacitance 22nF
• Body dimensions 4x9x13mm
• Mounting THT
• Tolerance ±10%
• Terminal pitch 10mm
• Operating temperature -55...100°C
• Climate class 55/100/56
• Pulse resistance 500V/μs
• Capacitor application high frequency circuits,  oscillating circuits,  timing circuits
• Flammability rating UL94V-0
• Kind of material flame retardant
• Leads dimensions L 6mm
• Max. operating voltage 280V AC,  630V DC
• Additional information
• Gross weight: 0.667 g
• Manufacturer part number: MKP4J022203C00KSSD

Parametri

22nF
630VDC
WIMA
±10%
280VAC
