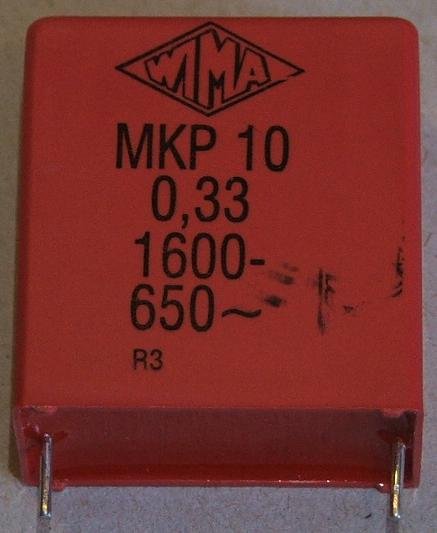

• Manufacturer WIMA
• Type of capacitor polypropylene
• Capacitance 330nF
• Body dimensions 17x34.5x31.5mm
• Mounting THT
• Tolerance ±20%
• Terminal pitch 27.5mm
• Capacitors features low dielectric loss factor
• Operating temperature -55...100°C
• Climate class 55/100/56
• Pulse resistance 900V/μs
• Capacitor application high frequency circuits, impulse circuits
• Kind of capacitor low ESR
• Flammability rating UL94V-0
• Kind of material flame retardant
• Leads dimensions L 6mm
• Max. operating voltage 650V AC, 1.6kV DC

Parametri

330nF
1600VDC
WIMA
650VAC
±20%
