Apraksts

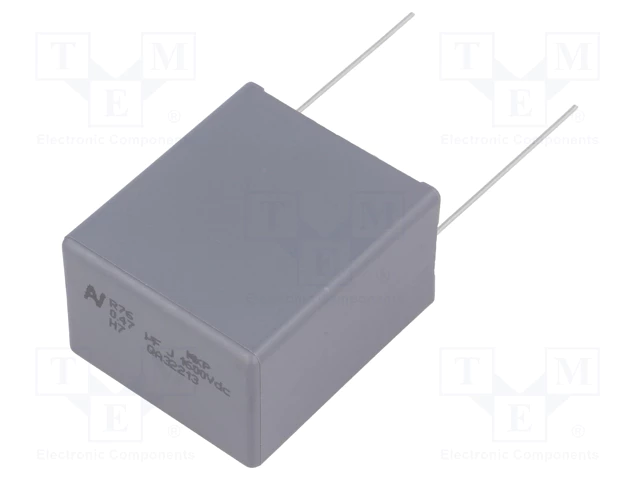

• Manufacturer KEMET
• Type of capacitor polypropylene
• Manufacturer series R76
• Capacitance 0.47µF
• Body dimensions 32x22x37mm
• Mounting THT
• Tolerance ±5%
• Terminal pitch 27.5mm
• Operating temperature -55...105°C
• Pulse resistance 2kV/μs
• Lead length 30mm
• Flammability rating UL94V-0
• ECE R-118:
• This regulation applies to fire testing of materials used in the interiors
• of motor vehicles, such as upholstery, floor coverings, etc.
• UL94:
• This standard is used to assess the flammability of plastic materials
• used in various industries, including the electronics, automotive
• and construction sectors.
• Kind of material flame retardant
• Max. operating voltage 650V AC, 1.6kV DC
• Climate class
• 55/105/56
• IEC 60068-1
• Gross weight30.4 g

Parametri

470nF
1600VDC
KEMET
650VAC
±5%

Papildu dokumentācija
