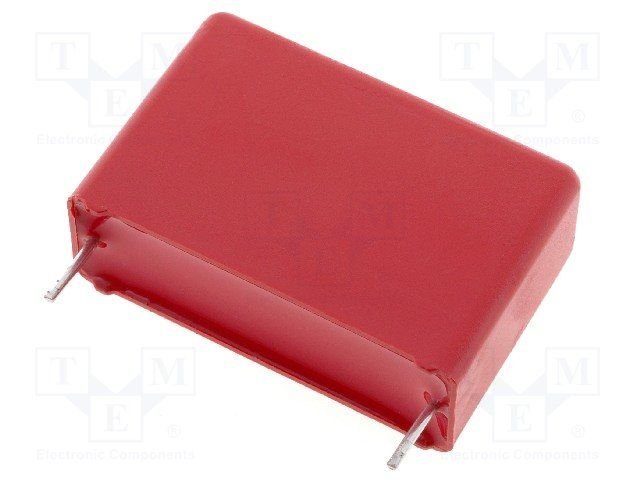

Apraksts

• Manufacturer WIMA
• Capacitor type polypropylene
• Capacitance 4.7µF
• Terminal pitch 37.5mm
• Tolerance ±20%
• Capacitor application high frequency circuits, impulse circuits
• Body dimensions 20 x 39.5 x 41.5mm
• Leads dimensions len. 6mm
• Climate class 55/100/56
• Operating temperature -55...100°C
• Enclosure material self-extinguishing, UL94V-0
• Pulse resistance 100V/μs
• Mounting THT
• Max. operating voltage 250V AC, 400V DC
• Capacitance - nF 4700nF Capacitors features:
• low ESR resistance value
• low dielectric loss factor

Parametri

4.7mkF
400VDC
WIMA
250VAC
±20%
