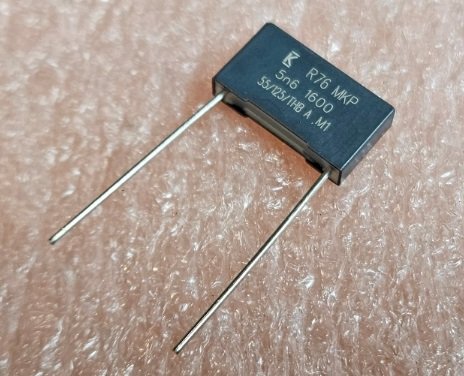

Apraksts

• Manufacturer KEMET
• Type of capacitor polypropylene
• Capacitance 5.6nF
• Body dimensions 18x4x10mm
• Mounting THT
• Tolerance ±5%
• Terminal pitch 15mm
• Operating temperature -55...125°C
• Pulse resistance 6000V/μs
• Manufacturer series R76
• Lead length 25mm
• Conform to the norm AEC-Q200
• Flammability rating UL94V-0
• Kind of material flame retardant
• Max. operating voltage 650V AC,  1600V DC
• Climate class
• 55/105/56
• IEC 60068-1
• Additional information
• Gross weight: 1.2 g
• Manufacturer part number: R76TI156050H4J

Parametri

5.6nF
2000VDC
KEMET
650VAC
±5%

Papildu dokumentācija
