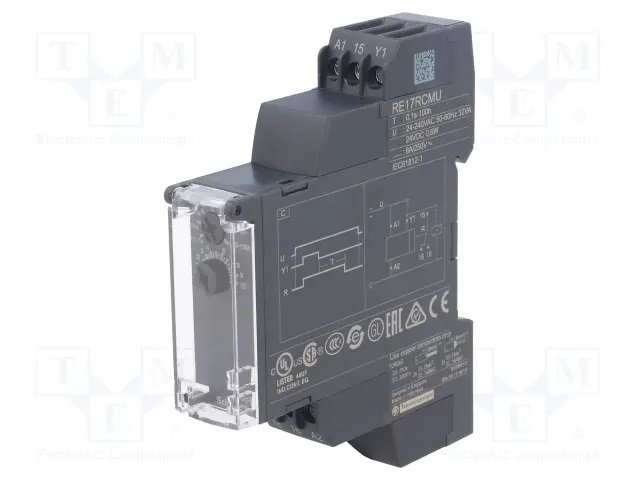

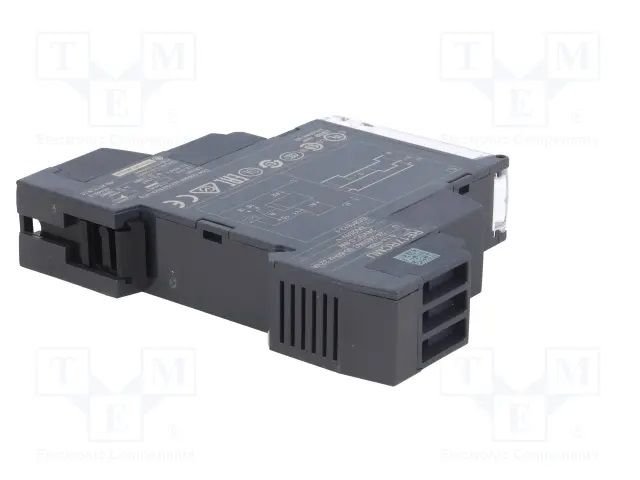

Laika relejs, SPDT, 8A/250VAC, 0,1s...100st, Ubar=24VDC vai 24...240VAC, IP20, DIN, delayed switching off, with the control contact S
Laika relejs, SPDT, 8A/250VAC, 0,1s...100st, Ubar=24VDC vai 24...240VAC, IP20, DIN, delayed switching off, with the control contact S
Laika relejs, SPDT, 8A/250VAC, 0,1s...100st, Ubar=24VDC vai 24...240VAC, IP20, DIN, delayed switching off, with the control contact S
Laika relejs, SPDT, 8A/250VAC, 0,1s...100st, Ubar=24VDC vai 24...240VAC, IP20, DIN, delayed switching off, with the control contact S Laika relejs, SPDT, 8A/250VAC, 0,1s...100st, Ubar=24VDC vai 24...240VAC, IP20, DIN, delayed switching off, with the control contact S Laika relejs, SPDT, 8A/250VAC, 0,1s...100st, Ubar=24VDC vai 24...240VAC, IP20, DIN, delayed switching off, with the control contact S

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Laika relejs, SPDT, 8A/250VAC, 0,1s...100st, Ubar=24VDC vai 24...240VAC, IP20, DIN, delayed switching off, with the control contact S

Cena: 32.46 €
00027478
RE17RCMU
2

  • Apraksts

    • Manufacturer SCHNEIDER ELECTRIC
    • Type of module timer
    • Counting range 0,1s...100h
    • Kind of output SPDT
    • Output 1 electrical parameters 250V AC/8A
    • Supply voltage 24V DC, 24...240V AC
    • number of operation modes 1
    • Counter operation modes delayed switching off, with the control contact S
    • Electrical connection screw terminals
    • Mounting DIN
    • Operating temperature -20...60°C
    • IP rating IP20 Additional information
    • Gross weight: 77.22 g
    • Manufacturer part number: RE17RCMU
