Apraksts

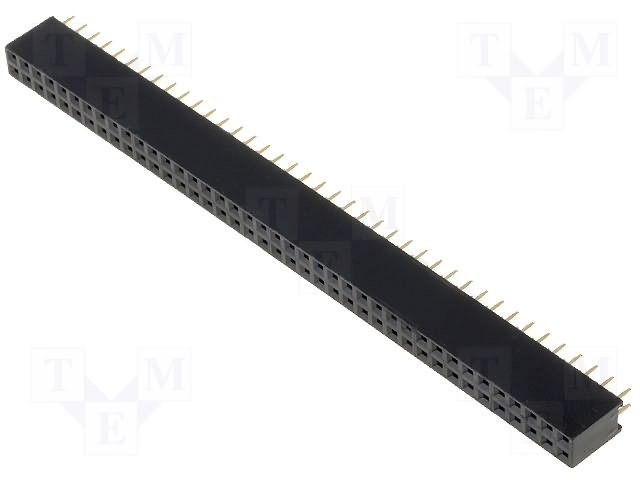

• Specification
• Connector socket
• Connector type pin strips
• Connector type female
• Number of pins 80
• Spatial orientation straight
• Contacts pitch 2.54mm
• Mounting THT
• Type of pin configuration 2x40
• Contact plating gold plated
• Leads dimensions len. 3.2mm
• Maximum current 3A
• Max. contact resistance: 30mΩ;
• Height 8.5mm
• Operating temperature -55...105°C

Parametri

2x40
80
Ligzda
2,54mm

Papildu dokumentācija
