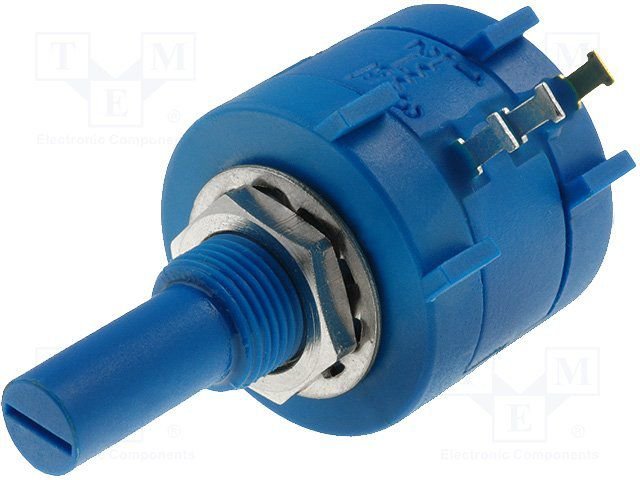

Apraksts

• Manufacturer SR Passives
• Potentiometer type shaft
• Potentiometer kind multiturn
• Resistance 2kΩ
• Power 2W
• Tolerance ±5%
• Shaft diameter 6.35mm
• Characteristics linear
• Body dimensions Ø22 x 18mm
• Track material wirewound
• Number of electrical turns 10
• Shaft length 13mm
• Potentiometer features precise
• Linearity tolerance ±0.25%
• Operating temperature -55...125°C
• Shaft surface smooth
• Min. insulation resistance 1000MΩ
• Shaft material plastic
• Mechanical durability 250000cycles
• Fastening thread M9x0,75

Parametri

2K
2W
Daudzapgriezienu
Lineāre atkarība
Mono

Papildu dokumentācija
