Apraksts

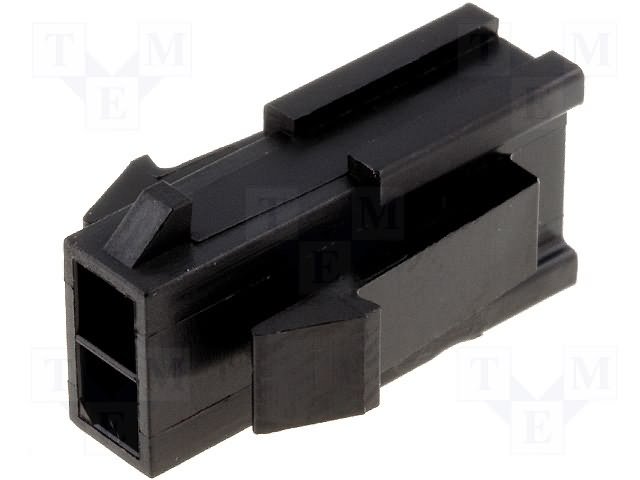

• Specification
• Connector plug
• Connector type wire-board
• Connector type male
• Contacts pitch 3mm
• Number of pins 2
• Connector series Micro-Fit 3.0
• Operating temperature -40...105°C
• Flammability rating UL94V-0
• Type of pin configuration 2x1
• Locking system lock
• Rated voltage 250V
• Mechanical mounting for panel mounting, for cable, snap fastener
• A dimension 3.86mm
• C dimension 4.21mm
• D dimension 7.9mm
• Material polyester
