• Manufacturer HIGHLY

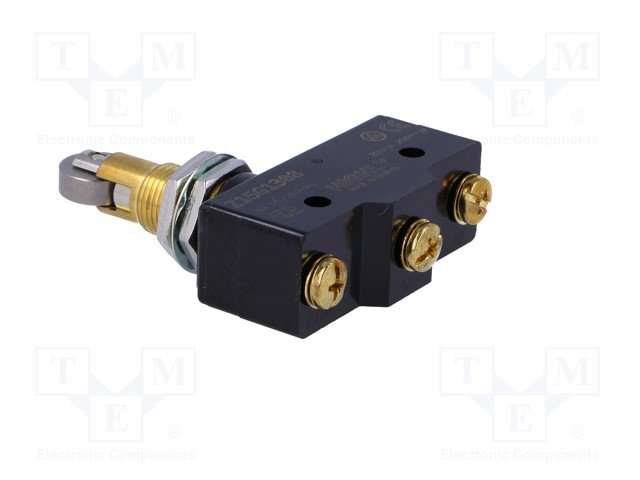

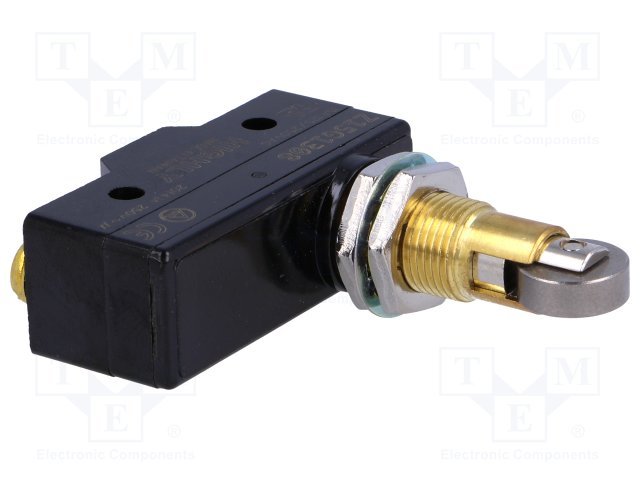

• Type of switch microswitch SNAP ACTION
• Switches features with longitudinal roller
• Contacts configuration SPDT
• AC contacts rating @R
• (at resistance load) 20A / 250VAC
• AC contacts rating @L
• (at inductive load) 4A / 125VAC
• Switching method
• (item in brackets is instantaneous) ON-(ON)
• Number of positions 2
• Stable positions number 1-position
• IP rating IP40
• Leads M4 screws

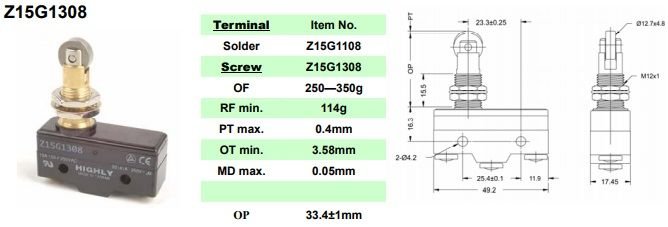

• Body dimensions 49.2 x 17.45 x 24.2mm
• Mechanical durability 1000000cycles
• Operating temperature 0...55°C
• Operating Force 3.5N
• Electrical life 100000cycles
• Max. contact resistance: 15mΩ
• Min. insulation resistance 100MΩ
• Related items AA8000

Parametri

SPDT
20A/250VAC
ON-(ON)
IP40
Bez sviras
49.2x17.45x24.2mm
