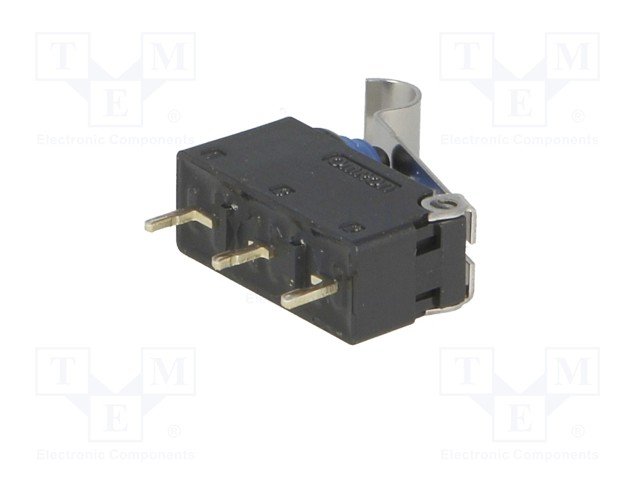

Apraksts

• Manufacturer OMRON OCB
• Manufacturer series D2HW
• Type of switch microswitch SNAP ACTION

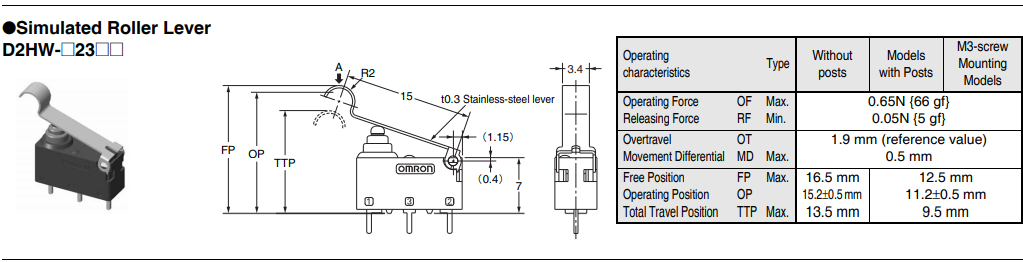

• Switches features with lever with roller simulation
• Contacts configuration  SPDT
• AC contacts rating @R  0.1A / 125V AC
• DC contacts rating @R  2A / 12V DC
• Max. contact resistance: 100mΩ
• Switching method  ON-(ON)
• Number of positions 2
• Stable positions number 1
• IP rating IP67
• Leads for PCB
• Body dimensions 13.3x5.3x6.5mm
• Mechanical durability 1000000 cycles
• Operating temperature -40...85°C
• Operating Force 0.65N
• Lever length 15mm
• Electrical life 100000 cycles
• Contact plating gold-plated
• Terminal pitch 5.08mm
• Additional information
• Gross weight: 0.86 g
• Manufacturer part number: D2HW-A231D

Parametri

SPDT
0.1A/125VAC
2A/12VDC
ON-(ON)
IP67
ar sviru
13.3x5.3x9.3mm

Papildu dokumentācija
