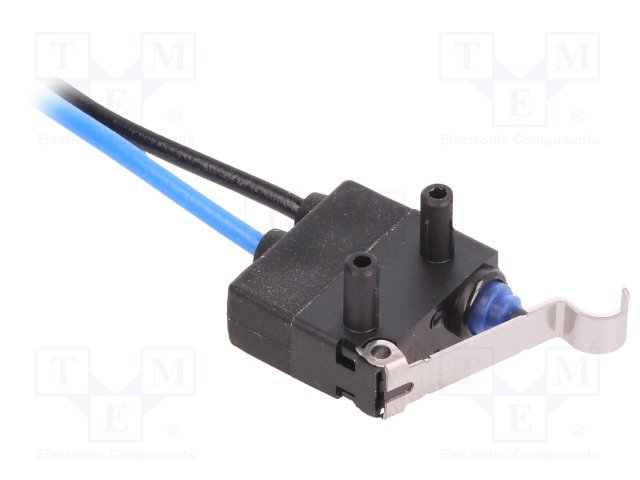

Apraksts

• Manufacturer OMRON
• Manufacturer series D2HW
• Type of switch microswitch SNAP ACTION
• Switches features with lever with roller simulation
• Contacts configuration SPST-NO
• AC contacts rating @R
• (at resistance load) 0.1A / 125VAC
• DC contacts rating @R
• (at resistance load) 2A / 12VDC
• Switching method
• (item in brackets is instantaneous) OFF-(ON)
• Number of all positions 2
• Stable positions number 1-position
• IP rating IP67
• Leads downwards, 300mm leads
• Body dimensions 13.3 x 5.3 x 6.5mm
• Mechanical durability 1000000cycles
• Operating temperature -40...85°C
• Operating Force 0.75N
• Lever length 15mm
• Electrical life 100000cycles
• Max. contact resistance: 100mΩ
• Contact plating gold plated
• Terminal pitch 5.08mm

Parametri

SPST-NO
0.1A/125VAC
2A/12VDC
OFF-(ON)
IP67
Ar sviru
13.3x5.3x6.5mm

Papildu dokumentācija
