Apraksts

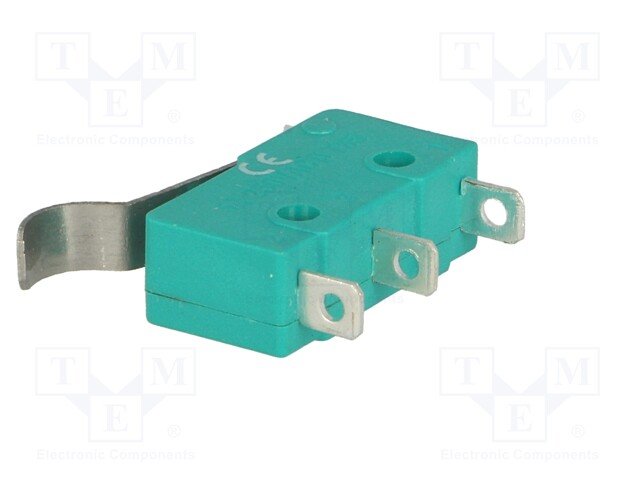

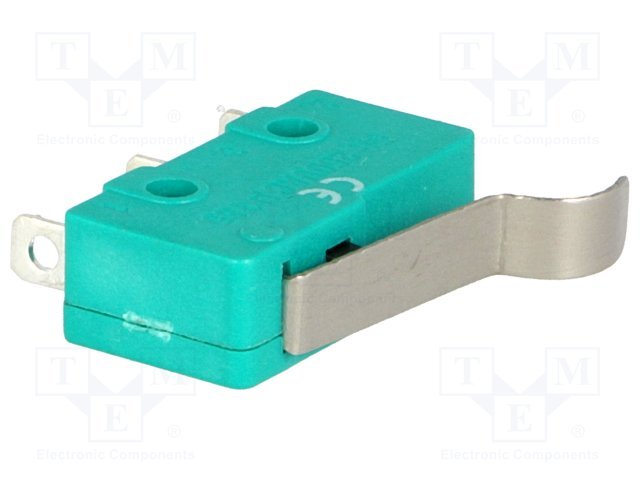

• Type of switch microswitch SNAP ACTION
• Switches features with lever with roller simulation
• Contacts configuration SPDT
• AC contacts rating @R
• (at resistance load) 5 A / 250 VAC
• Switching method
• (item in brackets is instantaneous) ON-(ON)
• Number of all positions 2
• Stable positions number 1-position
• IP rating IP40
• Leads for soldering

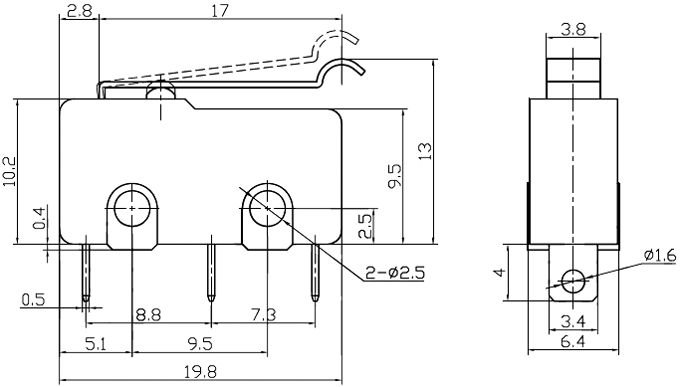

• Body dimensions 19.8 x 6.4 x 10.6mm
• Operating temperature -25...65°C
• Operating Force 1.5N
• Lever length 17mm
• Electrical life 30000cycles
• Max. contact resistance: 30mΩ
• Min. insulation resistance 100MΩ
• Terminal pitch 7.3mm

Parametri

SPDT
5A/250VAC
ON-(ON)
IP40
Ar sviru

Papildu dokumentācija
