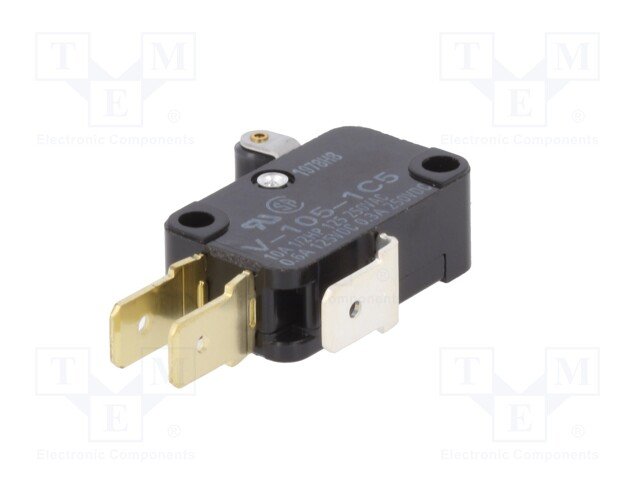

Apraksts

• Manufacturer OMRON OCB
• Type of switch microswitch SNAP ACTION
• Switches features with lever (with roller)
• Contacts configuration  SPDT
• AC contacts rating @R  10A / 250V AC
• (at resistive load)
• DC contacts rating @R  0.6A / 125V DC
• (at resistive load)
• Max. contact resistance: 15mΩ
• Switching method  ON-(ON)
• (the position in bracket indicates momentary position.)
• Number of positions 2
• Stable positions number 1
• IP rating IP40
• Leads 6,35x0,8mm connectors

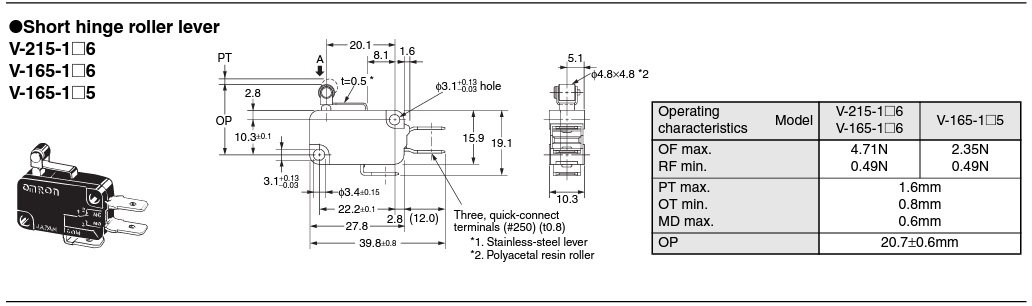

• Body dimensions 27.8x10.3x15.9mm
• Mechanical durability 50000000 cycles
• Operating temperature -25...80°C
• Operating Force 1.96N
• Lever length 12mm
• Electrical life 300000 cycles
• Series V
• Additional information
• Gross weight: 7.96 g
• Manufacturer part number: V-105-1C5

Parametri

SPDT
10A/250VAC
ON-(ON)
IP40
Ar sviru
27.8x10.3x15.9mm

Papildu dokumentācija
