Apraksts

• Manufacturer OMRON OCB
• Manufacturer series D2SW

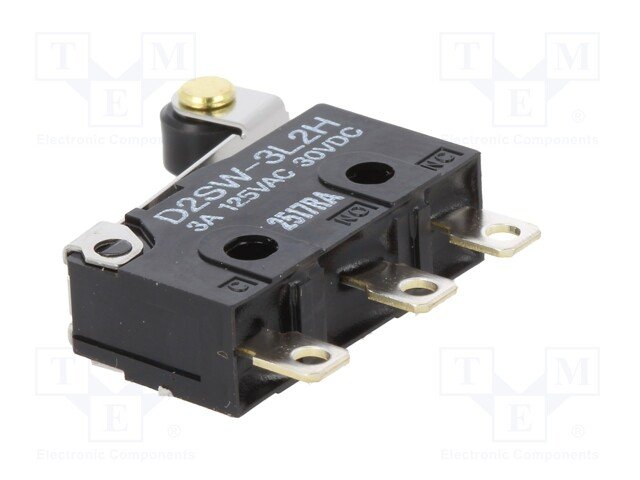

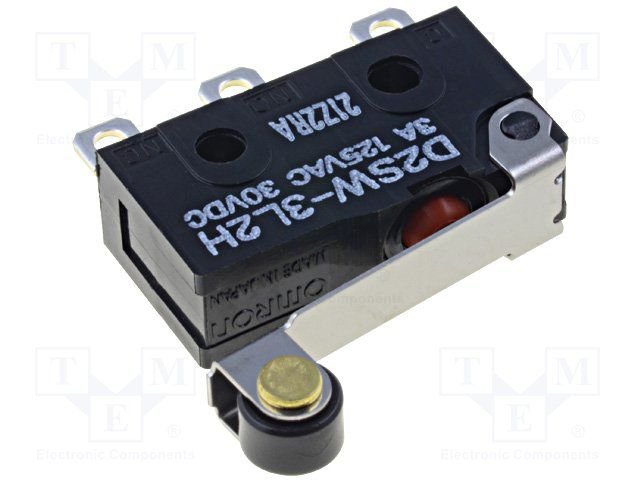

• Type of switch microswitch SNAP ACTION
• Switches features with lever (with roller)
• Contacts configuration  SPDT
• AC contacts rating @R  3A / 125V AC
• DC contacts rating @R  3A / 30V DC
• Max. contact resistance: 30mΩ
• Switching method  ON-(ON)
• Number of positions 200.00%
• Stable positions number 1
• IP rating IP67
• Leads for soldering
• Body dimensions 19.8x6.4x10.1mm
• Mechanical durability 5000000 cycles
• Operating temperature -40...85°C

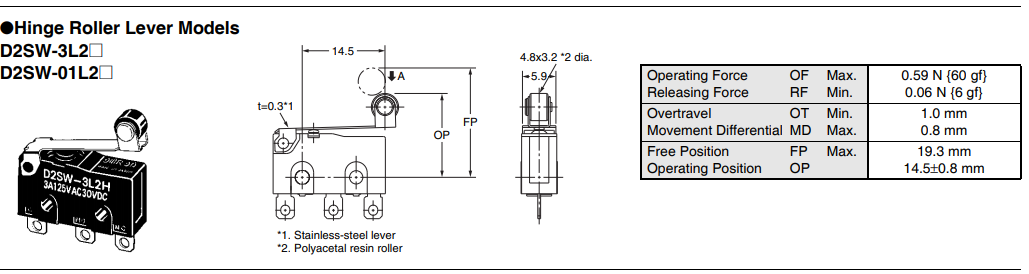

• Operating Force 0.59N
• Lever length 14.5mm
• Electrical life 200000 cycles
• Contact plating silver plated
• Terminal pitch 8.5mm
• Related items D2SW
• Additional information
• Gross weight: 2.22 g
• Manufacturer part number: D2SW-3L2H

Parametri

SPDT
3A/125VAC
3A/30VDC
ON-(ON)
IP67
ar sviru
19.8x6.4x10.1mm

Papildu dokumentācija
