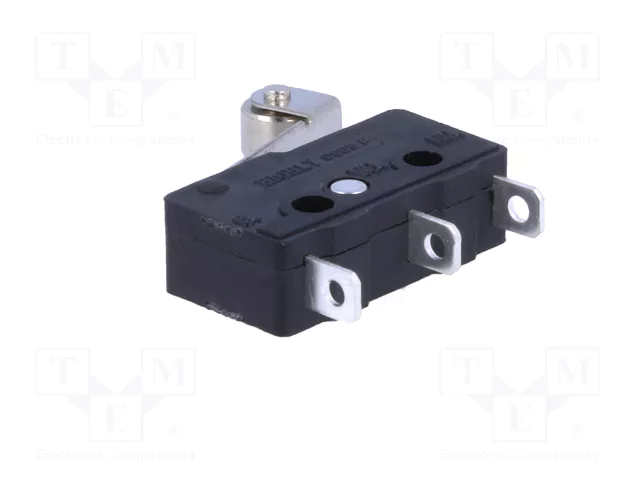

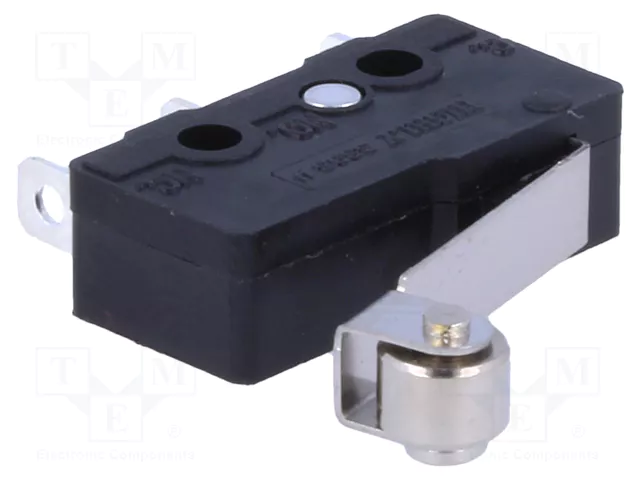

Apraksts

• Manufacturer HIGHLY ELECTRIC
• Type of switch microswitch SNAP ACTION
• AC contacts rating @R(at resistive load) 3A / 250V AC
• at resistive load
• Switches features with lever (with roller)
• Contacts configuration SPDT
• Contacts configuration
• Max. contact resistance: 30mΩ
• Switching method(the position in bracket indicates momentary position.) ON-(ON)
• The position in bracket indicates momentary position.
• Number of positions 2
• Stable positions number 1
• IP rating IP40
• Leads for soldering

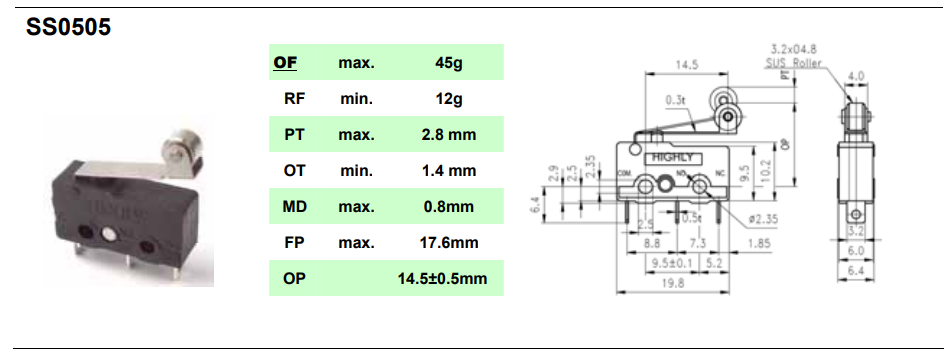

• Body dimensions 19,8x6,4x10,2mm
• Mechanical durability 1000000 cykli
• Operating temperature -25...70°C
• Operating Force 1,5N
• Lever length 17mm
• Electrical life 100000 cykli
• Min. insulation resistance 0,1GΩ
• Terminal pitch 7,3mm
• Masa bruto2.71 g

Parametri

SPDT
3A/250VAC
ON-(ON)
IP40
Ar sviru
19.8x6.4x10.2mm
