Apraksts

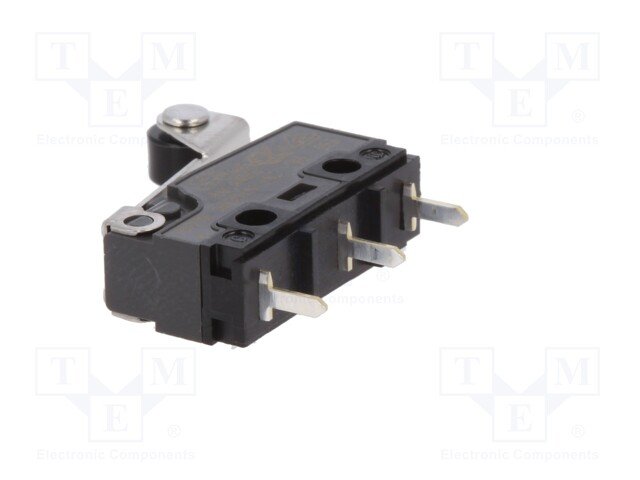

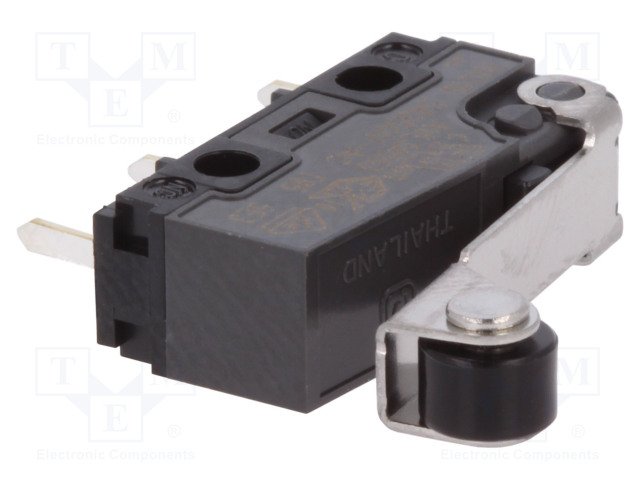

• Manufacturer PANASONIC
• Manufacturer series AVL3
• Type of switch microswitch SNAP ACTION
• Switches features with lever (with roller)
• Contacts configuration  SPDT
• AC contacts rating @R  5A / 250V AC
• AC contacts rating @L  3A / 250V AC
• DC contacts rating @R  5A / 30V DC
• DC contacts rating @L  3A / 30V DC
• Max. contact resistance: 50mΩ
• Switching method  ON-(ON)
• Number of positions 2
• Stable positions number 100%
• IP rating IP40
• Leads for PCB,  straight
• Body dimensions 19.8x6.4x10.1mm
• Mechanical durability 30000000 cycles
• Operating temperature -25...85°C
• Operating Force 0.59N
• Electrical life 50000 cycles
• Min. insulation resistance 100MΩ
• Contact material AgNi
• Additional information
• Gross weight: 2.24 g
• Manufacturer part number: AVL34553

Parametri

SPDT
5A/250VAC
5A/30VDC
ON-(ON)
IP40
Ar sviru
19.8x6.4x10.1mm

Papildu dokumentācija
