Apraksts

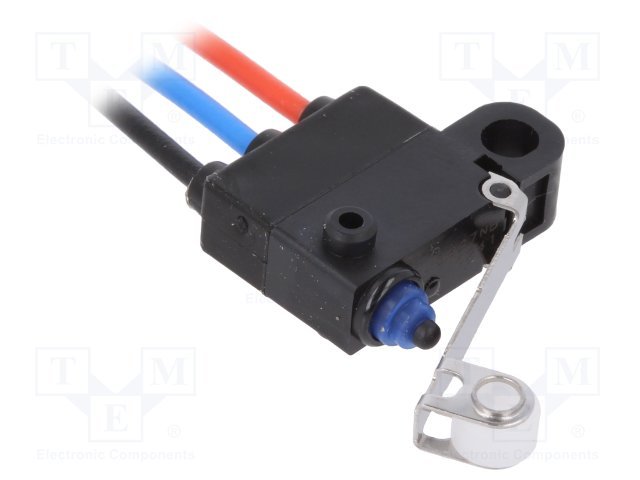

• Manufacturer OMRON
• Manufacturer series D2HW
• Type of switch microswitch SNAP ACTION
• Switches features with lever (with roller)
• Contacts configuration SPDT
• AC contacts rating @R
• (at resistance load) 0.1A / 125V AC
• DC contacts rating @R
• (at resistance load) 2A / 12V DC
• Switching method
• (item in brackets is instantaneous) ON-(ON)
• Number of positions 2
• Stable positions number 1-position
• IP rating IP67
• Leads 300mm leads, downwards
• Body dimensions 18.5x5.3x6.5mm
• Mechanical durability 1000000cycles
• Operating temperature -40...85°C
• Operating Force 0.65N
• Lever length 15mm
• Electrical life 100000cycles
• Max. contact resistance: 150mΩ
• Contact plating gold-plated Additional information
• Gross weight: 7.6 g

Parametri

SPDT
0.1A/125VAC
2A/12VDC
ON-(ON)
IP67
Ar sviru
18.5x5.3x6.5mm
