Apraksts

• Manufacturer NINIGI

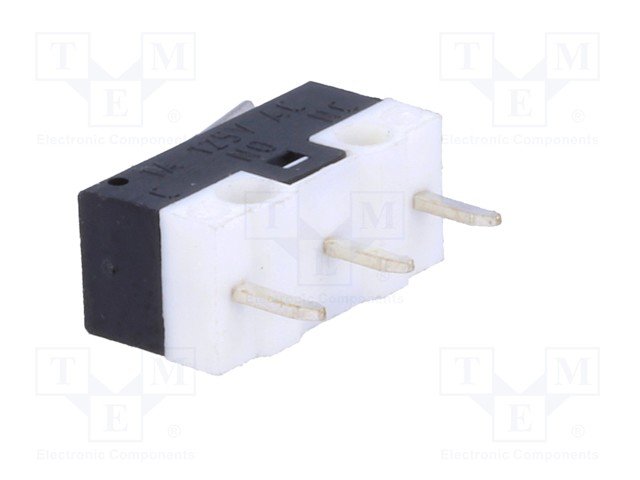

• Type of switch microswitch SNAP ACTION
• Switches features with lever
• Contacts configuration  SPDT
• Max. contact resistance: 30mΩ
• Switching method  ON-(ON)
• Number of positions 2
• Stable positions number 1
• IP rating IP40
• Leads for PCB,  straight
• Body dimensions 12.8x5.8x6.5mm
• Operating temperature -25...65°C
• Operating Force 1N
• Lever length 12mm
• Electrical life 30000 cycles
• Terminal pitch 5.08mm
• Maximum current 1A
• Voltage min. 125V
• Max. voltage 250V AC

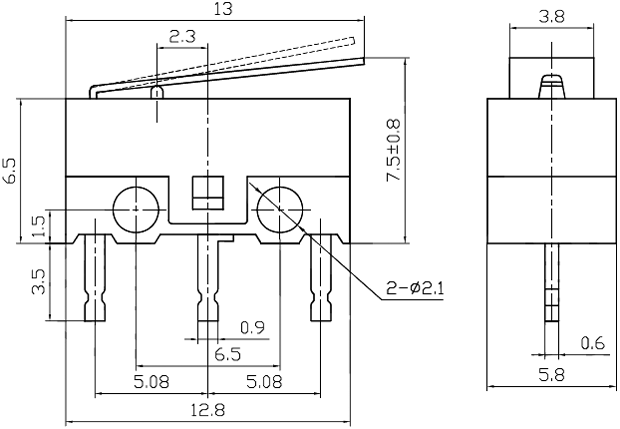

• Dimensions see
• Additional information
• Gross weight: 0.626 g
• Manufacturer part number: MSW-22

Parametri

SPDT
ON-(ON)
IP40
Ar sviru
12.8x5.8x6.5mm
1A/125VAC

Papildu dokumentācija
