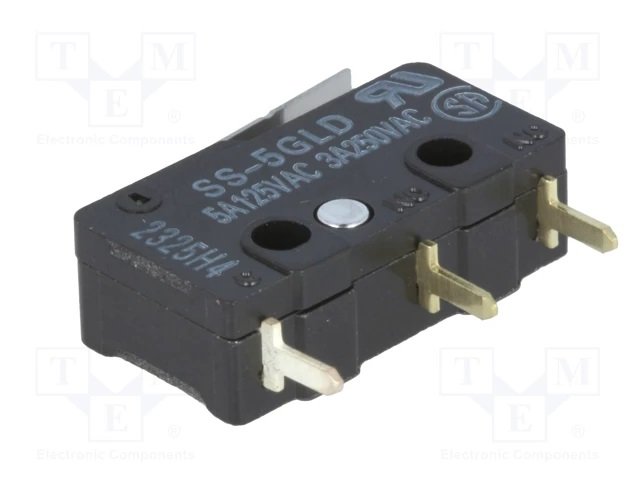

Mikropārslēdzējs ar sviru L=14.5mm, SPDT, ON-(ON), 3A/250VAC, 5A/125VAC, THT, IP40, 19.8x6.4x10.2mm, viens kontakts
Mikropārslēdzējs ar sviru L=14.5mm, SPDT, ON-(ON), 3A/250VAC, 5A/125VAC, THT, IP40, 19.8x6.4x10.2mm, viens kontakts
Mikropārslēdzējs ar sviru L=14.5mm, SPDT, ON-(ON), 3A/250VAC, 5A/125VAC, THT, IP40, 19.8x6.4x10.2mm, viens kontakts
Mikropārslēdzējs ar sviru L=14.5mm, SPDT, ON-(ON), 3A/250VAC, 5A/125VAC, THT, IP40, 19.8x6.4x10.2mm, viens kontakts Mikropārslēdzējs ar sviru L=14.5mm, SPDT, ON-(ON), 3A/250VAC, 5A/125VAC, THT, IP40, 19.8x6.4x10.2mm, viens kontakts Mikropārslēdzējs ar sviru L=14.5mm, SPDT, ON-(ON), 3A/250VAC, 5A/125VAC, THT, IP40, 19.8x6.4x10.2mm, viens kontakts

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Mikropārslēdzējs ar sviru L=14.5mm, SPDT, ON-(ON), 3A/250VAC, 5A/125VAC, THT, IP40, 19.8x6.4x10.2mm, viens kontakts

Cena: 1.89 €
00018720
SS-5GLD
18
  • Apraksts

    • Manufacturer OMRON OCB
    • Type of switch microswitch SNAP ACTION
    • Switches features with lever
    • Contacts configuration SPDT
    • AC contacts rating @R(at resistive load) 5A / 125V AC
    • Max. contact resistance: 30mΩ
    • Switching method(the position in bracket indicates momentary position.) ON-(ON)
    • Number of positions 2
    • Stable positions number 1
    • IP rating IP40
    • Leads for PCB, straight

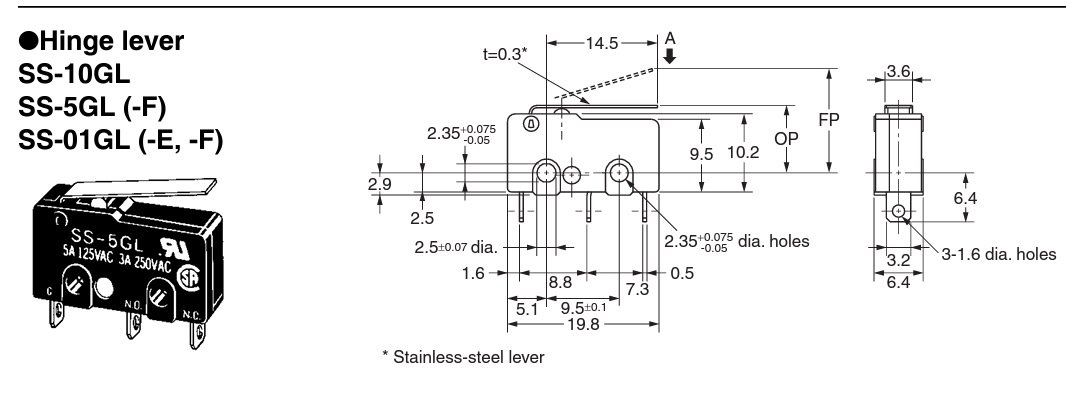

    • Body dimensions 19.8x6.4x10.2mm
    • Mechanical durability 30000000 cycles
    • Operating temperature -25...85°C
    • Operating Force 1.47N
    • Lever length 14.5mm
    • Electrical life 200000 cycles
    • Min. insulation resistance 100MΩ
    • Terminal pitch 7.3mm
    • Manufacturer series SS

    Parametri

    SPDT
    3A/250VAC
    ON-(ON)
    IP40
    ar sviru
    19.8x6.4x10.2mm
