Apraksts

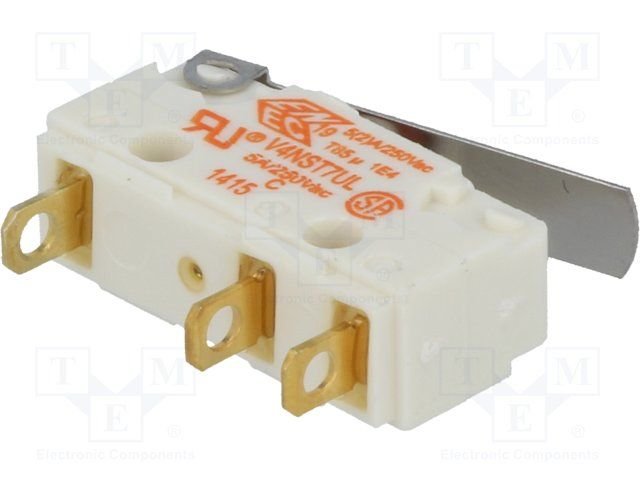

• Manufacturer SAIA-BURGESS
• Manufacturer series V4N
• Type of switch microswitch SNAP ACTION
• Switches features with lever
• Contacts configuration  SPDT
• AC contacts rating @R  5A / 250V AC
• Switching method  ON-(ON)
• Number of positions 2
• Stable positions number 1
• IP rating IP67
• Leads for soldering

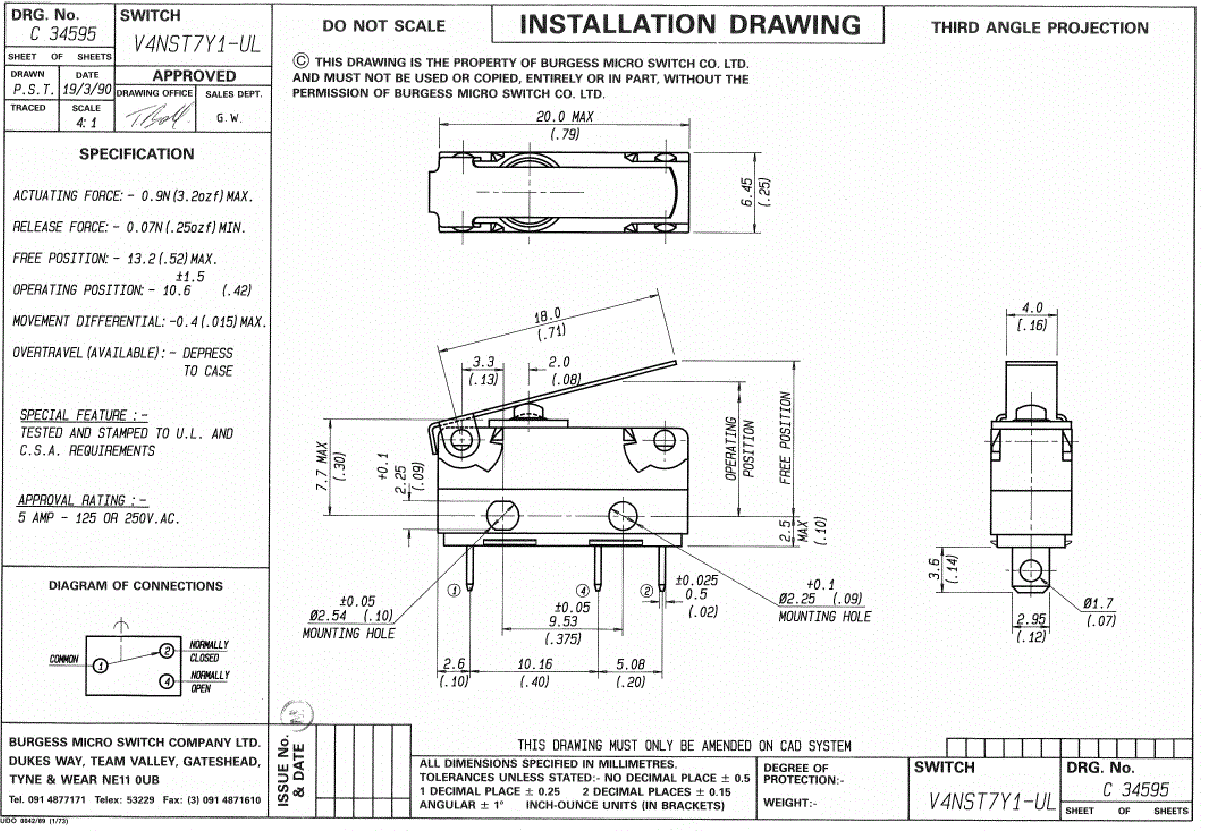

• Body dimensions 20x6.4x17.5mm
• Mechanical durability 50000000 cycles
• Operating temperature -40...85°C
• Operating Force 0.9N
• Lever length 18mm
• Terminal pitch 5.08mm
• Additional information
• Gross weight: 1.873 g
• Manufacturer part number: V4NST7Y1-UL

Parametri

SPDT
5A/250VAC
ON-(ON)
IP67
Ar sviru
20x6.4x17.5mm
