Apraksts

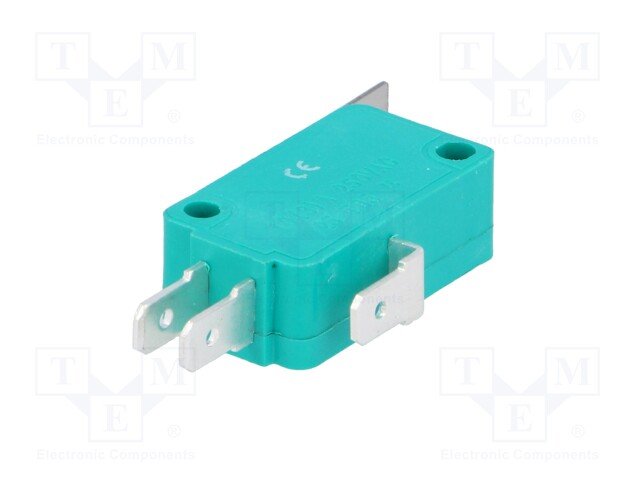

• Type of switch microswitch SNAP ACTION
• Switches features with lever
• Contacts configuration  SPDT
• AC contacts rating @R  10A / 250V AC
• Max. contact resistance: 30mΩ
• Switching method  ON-(ON)
• Number of positions 2
• Stable positions number 1
• IP rating IP40
• Leads connectors
• Body dimensions 28x10.3x16mm
• Operating temperature -25...80°C
• Operating Force 1.6N
• Lever length 27mm
• Electrical life 100000 cycles
• Min. insulation resistance 100MΩ

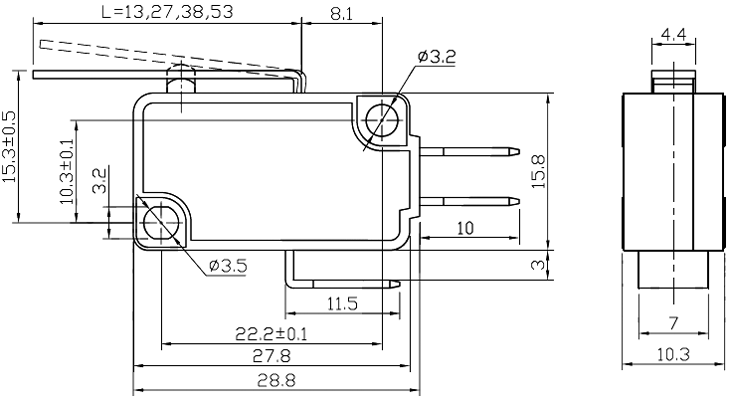

• Dimensions see
• Additional information
• Gross weight: 7.3 g

Parametri

SPDT
10A/250VAC
ON-(ON)
IP40
ar sviru
28x10.3x16mm

Papildu dokumentācija
