Apraksts

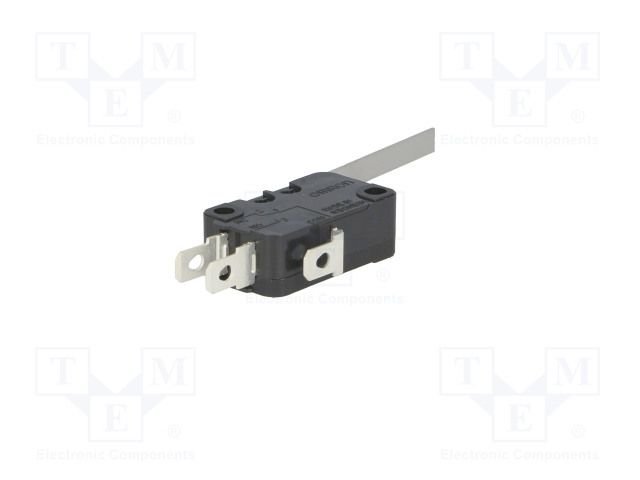

• Manufacturer OMRON OCB
• Manufacturer series D3V
• Type of switch microswitch SNAP ACTION
• Switches features with lever
• Contacts configuration SPDT
• AC contacts rating @R
• (at resistive load) 16A / 250V AC
• DC contacts rating @R
• (at resistive load) 10A / 30V DC
• Max. contact resistance: 30mΩ
• Switching method
• (item in brackets is instantaneous) ON-(ON)
• Number of positions 2
• Stable positions number 1
• IP rating IP40
• Leads 4,75x0,5mm connectors, for soldering

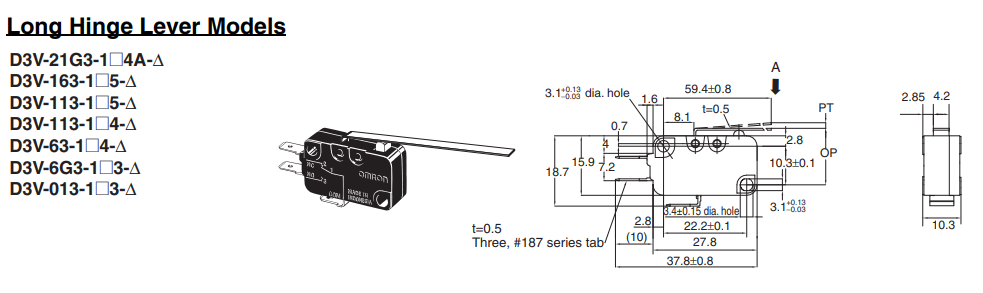

• Body dimensions 27.8x10.3x15.9mm
• Mechanical durability 10000000 cycles
• Operating temperature -25...105°C
• Operating Force 1.96N
• Lever length 50.9mm
• Electrical life 100000 cycles
• Contact plating silver plated
• Min. insulation resistance 100MΩ Additional information
• Gross weight: 7.32 g
• Manufacturer part number: D3V-163-1A5

Parametri

SPDT
16A/250VAC
10A/30VDC
ON-(ON)
IP40
ar sviru
27.8x10.3x15.9mm

Papildu dokumentācija
