Apraksts

• Manufacturer CANAL ELECTRONIC
• Type of switch microswitch SNAP ACTION
• Switches features with lever with roller simulation
• Contacts configuration  SPDT
• DC contacts rating @R  0.5A / 30V DC
• Max. contact resistance: 100mΩ
• Switching method  ON-(ON)
• Number of positions 2
• Stable positions number 1
• IP rating IP40
• Leads for PCB,  straight

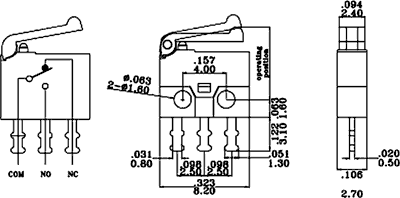

• Body dimensions 8.2x2.7x6.8mm
• Operating temperature -15...70°C
• Operating Force 1.2N
• Lever length 6.3mm
• Electrical life 100000 cycles
• Min. insulation resistance 100MΩ
• Terminal pitch 2.5mm
• Terminals plating silver plated
• Contact material silver alloy
• Terminals material brass
• Body material PBT
• Actuator material PBT
• Additional information
• Gross weight: 0.235 g
• Manufacturer part number: SSM-001

Parametri

SPDT
0.5A/30VDC
ON-(ON)
IP40
ar sviru
8.2x2.7x6.8mm

Papildu dokumentācija
